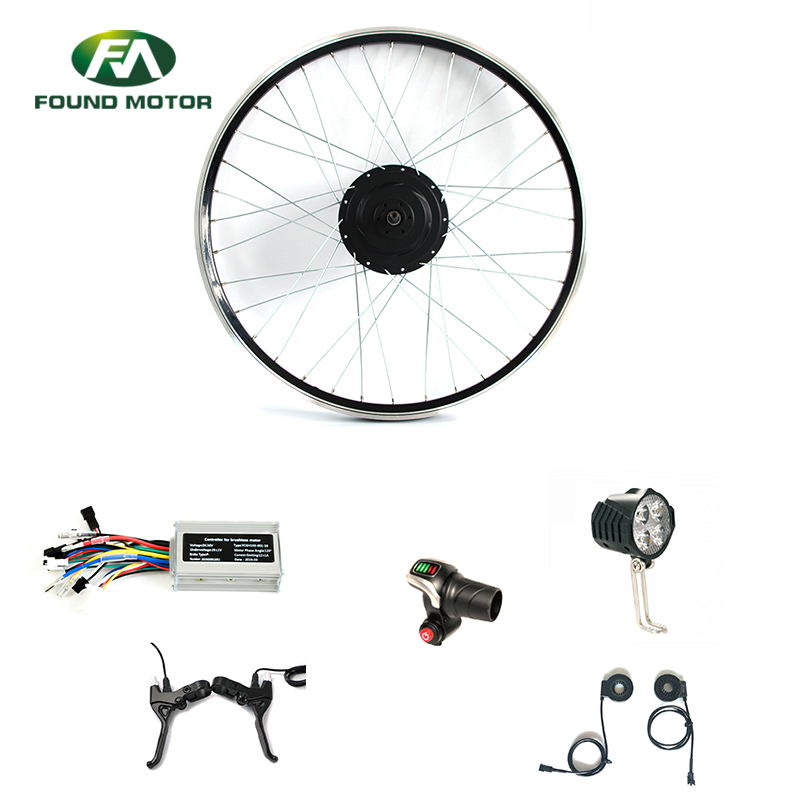

Electric Bike Conversion Kit

  • Electric Bike Conversion Kit DX - C Throttle With controller For Electric Bike And Electric Bicycle
Electric Bike Conversion Kit DX - C Throttle With controller For Electric Bike And Electric Bicycle

Electric Bike Conversion Kit DX - C Throttle With controller For Electric Bike And Electric Bicycle

  • FOUND MOTOR
  • Electric bike conversion kit
  • Voltage: 24V/36V/48V
  • Watt: 180W-500W
  • Description: Electric Bike Conversion Kit DX - C Throttle With controller For Electric Bike And Electric Bicycle
  • Inquiry



Electric Bike Conversion Kit DX - C Throttle With controller For Electric Bike And Electric Bicycle


Motor specifications


Rear drive motor

1.Wheel size:26” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V

3.Watt:180W/250W/350W

4.Speed:10-40Km/h

5.Freewheel:single speed freewheel

6.Dropout(open size): 125mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.


Front drive motor

1.Wheel size:26” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V

3.Watt:180W/250W/350W

4.Speed:10-40Km/h

5.Dropout(open size): 100mm

6.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

7..Disk motor cover , left side.

8.Color:black,silver optional.





Controller specifications


SW-9


Size                      140mm x 65mm x 35mm/88mm x 50mm x 30mm
Rated Voltage DC36V/DC48V/DC64V
Rated Power 180W- 500W
Low Voltage protection 12A-22A
Standby Power Consumption <50mA
Housing Materials Aluminum
Water Proof IPX6
Motor Matching Sensored Motor
Display Matching LED Display/ LCD Display









Throttle specifications

Model:DX-C
1.Throttle with normal connector.
2.Twist throttle,half twist throttle optional.
3.Different kinds grips can be provided.

4.Cable length: 1500mm






Brake lever specifications


1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm







Front light specifications


1.Front light with normal connector.
2.Front light optional.

3.Cable length: 1500mm






PAS specifications


1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
