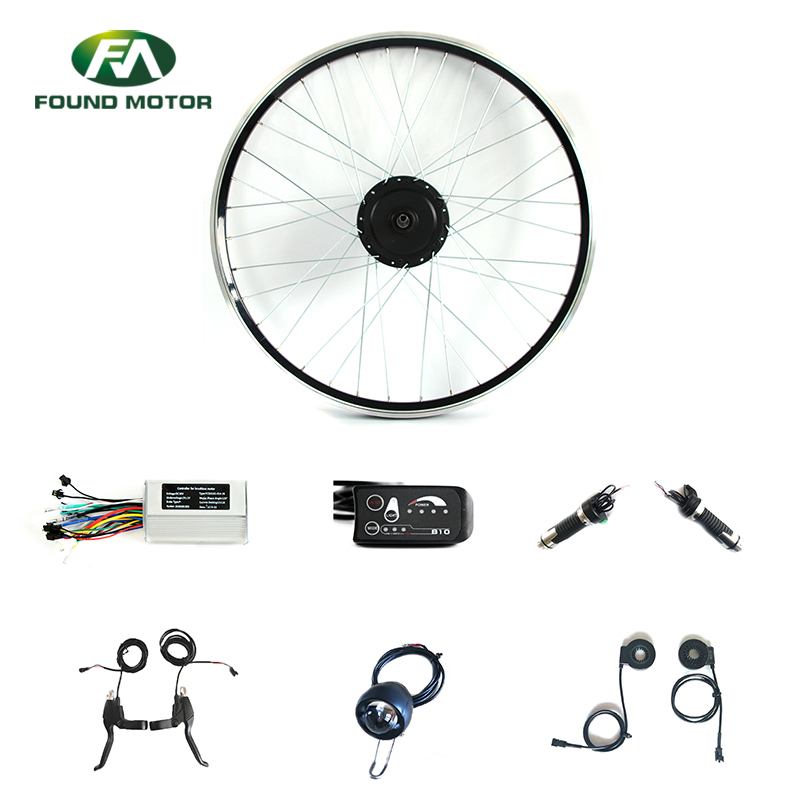

Electric Bike Conversion Kit with 48V 350W BLDC Geared Motor

Electric Bike Conversion Kit with 48V 350W BLDC Geared Motor

Motor specifications

Rear drive motor

1.Wheel size:26” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V

3.Watt:180W/250W/350W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.

Controller specifications

1.Size: 88mm x 50mm x 30mm
2.Rated Voltage: DC48V
3.Rated Power: 500W
4.Law Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA
6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor /Sensarless Motor
9.Display Matching: LED Display/LCD Display

Display specifications

1.Model: S810

2.Dimension:80.5mm*42mm*42.6mm

3.Function:PAS Level(0-3);Headlight;Walk;Cruise;Corrected Parameter

4.Protocol:UART/SPI/I2C Installation:ø22.2/ø25.4/ø31.8

5.Supply voltage:24V/36V/48V/60V/72V

6.Certification:GB/T19001-2008/CE/ROHS/IP65

Throttle specifications

1.Throttle with normal connector.
2.Twist throttle,half twist throttle optional.
3.Cable length: 1500mm
4.Different kinds grips can be provided.

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm

Front light specifications

1.Cable length: 1500mm

2.Front light optional

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
