Electric bike conversion kit with waterproof bus cable case 5



Electric bike conversion kit with waterproof bus cable case 5

Electric bike conversion kit 5
NO	Product Name	Product Code	Product Details

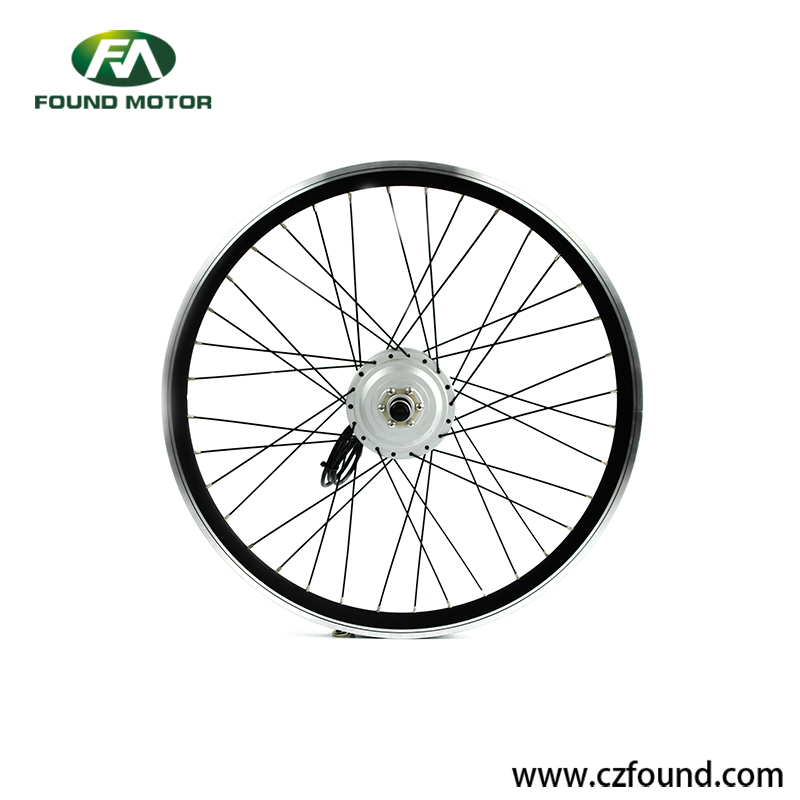

1	Motor	FM-01-01-92Q	1.26'' 36V 250W BLDC geared front drive motor with spokes and wheel. 2.Speed:25kmh.Dropout - 100mm 3.Motor wire - right side,100cm waterproof connector. 4.Disk motor cover , left side. 5.Color:black,silver optional. 6.Range for motor:180W-350W.
2	Controller	YCSH103-003-36	1.DC 36V, FOC controller. 2.Current-limiting12A. 3.Waterproof connector:Motor cable,power (battery)cable,assembly cable,PAS cable.
3	Throttle	TT001+088	1.Half twist throttle with waterproof connector. 2.Thumb throttle,twist throttle, half twist throttle optional. 3.Different kinds grips can be provided.
4	Brake  lever	KB-039	1.Brake lever with waterproof connector. 2.Different models brake levers optional.
5	Switch	KN-023	Switch(light and horn) with waterproof connector.
6	LCD display	S900	1.S900 LCD display with waterproof connector. 2.Different models LCD&LED displays are available.
7	Front light	SD-02	1.Front light &Horn with waterproof connector. 2.Different models front lights optional.
8	PAS	OMT-001	1.Right installed/mounted PAS with waterproof connector. 2.Left installed/mounted PAS optional.
9	Assembly cable	JL-01	1.Assembly cable with waterproof connector. 2.Power cable with waterproof connector.

REMARK: WITHOUT BATTERY.

PRODUCT FEATURES:

1.Low noise

2.Electricty saving

3.High torque

4.High strength

5.High safety coefficient,high efficiency

6.Long service life

7.Not easy to be hot

COMPANY PROFILE

CHANGZHOU FOUND ENVIRONMENTAL TECHNOLOGY CO., LTD,a professional and experienced electric motor factory and motor kits supplier in China,located in ChangzhouCity,Jiangsu Province .We are just one hour from Shanghai by high-speed train . It is easy for potential customers to come and have a look at our facility and products.

We recommend a low-carbon green lifestyle and support green environmental travel , we love riding culture,We want to enjoy green and healthy life with you!

Our products:

1.Brushless geared electric bike motor

2.Brushless gearless electric bike motor

3.Customized motor

4.Mid drive motor

5.Switched reluctance motor

6.Electric bike conversion kit

7.Electric bike accessories

8.Electric bike & Electric scooter

We believe in keeping the customers happy by providing them best service all the time.
We always faithfully to: integrity, cooperation, innovation, win-win!
We look forward to: FOUND THE FUTURE WITH YOU!





Our advantages:

1.Heartbeat price: Collaborative pricing strategy of motor, controller,throttle&brake lever&switch,LCD&LED display,PAS,front light,cutting extra cost and helping with get more profit margins for customers

2.Integrated performance: Specialist in providing intergrated solution for electric bike control system.

3.One-time delivery: Integration of all components of the production cycle, could improve the efficiency of supply chain.

4. One-stop service: The integrated service of providing assembly parts including pre-sale service, sale service, and after- sale service.

5.OEM&ODM services are available.

Our Services:

1.Two years guarantee.

2.Long time freely technical support.

3.24 hours technical support by e-mail&Wechat&Whatsapp&Skype.

4.Clients are our good friends, we will do our best to help friends, not limited to our existing products or business, we are happy to help friends and help them solve the problems.



1.Q: Is it available for sample?

A:Yes. We offer sample, but free sample are not available at beginning.

2.Q: What's your warranty for products?

A: a.) If you import goods from us, we will be full refunds protection if goods itself has quality problems.

b.) We can return your money if you are not satisfied with our product within 7 days after you get the goods, you only need take the freight.

c.) We promise to replace the goods freely if there are some problems within 6months.

d.) We promise 2 years' warranty. First year, exchanging products for free and second year, maintenance free. You only need to do is pay the freight.

3.Q:How much voltage we can do for motors?

A:24V,36V,48V,60V,72V as your required.

4.Q:How much power we can do for motors?

A: Electric bike motor 180W-5000W.

Switched reluctance motor 1200W-10.5KW

5.Q:How much speed we can do for motors?

A:For normal electric bike motor,25-60km/h as your bike wheel size.

For switched reluctance motor,10-60km/h.

For electric motorcycle motor,60-120km/h.

For customized motor,5-120km/h,depend on your demands&requirements.

6.Q:How much wheel size we can do for electric bike conversion kit?

A:12”-700C.

7.Q: Will the conversion kit fit my bicycle?

A: The conversion kit was designed to fit 90% of the bicycles/bikes, and you can check your bicycle fork (the two metal pieces that attach the wheel to the bicycle) to be sure.

You will need at least 100mm for front wheel and 135mm for rear wheel.

8.Q: Does the electric bicycle waterproof?

A: Yes. You can ride our electric bikes in the light rain without worrying about damaging the electric components.
