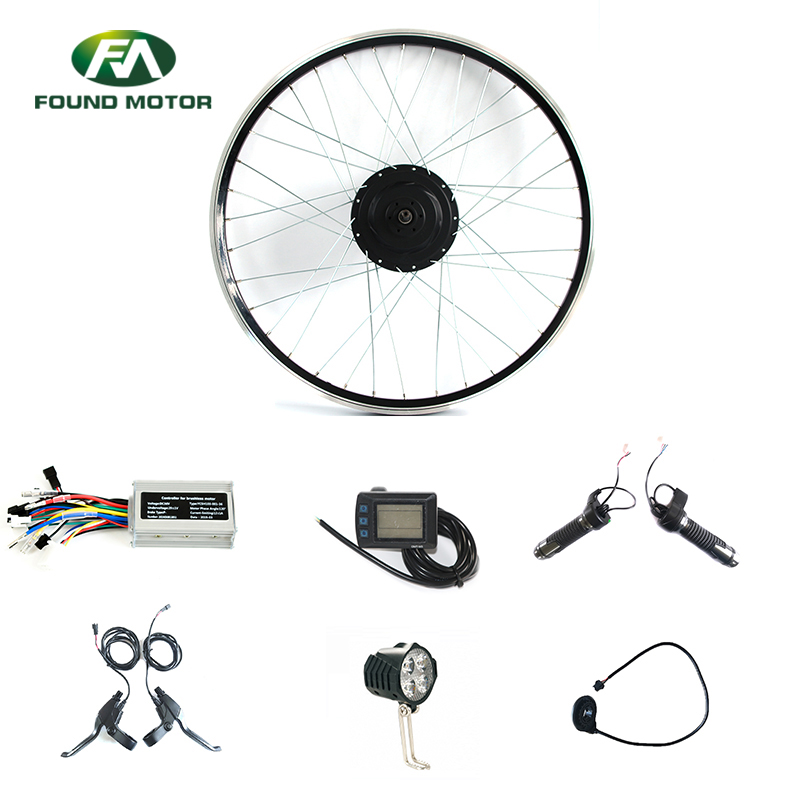

Electric bike conversion kit with M3 LCD/LED display for e-bike and electric bicycle

Electric bike conversion kit with M3 LCD/LED display for e-bike and electric bicycle

Motor specifications

Rear drive motor

1.Wheel size:26”  (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V

3.Watt:180W/250W/350W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.

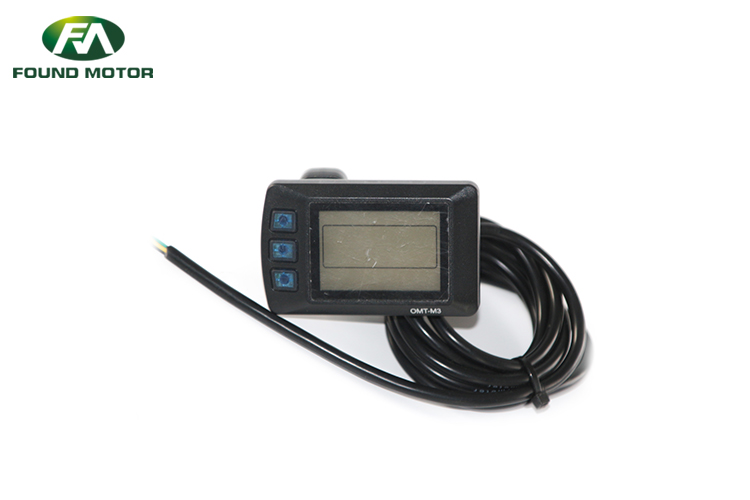

MODEL:M3

LCD/LED dispay for e-bike and electric bicycle

Dimentin:107mm*62mm*28mm

Fuction:Speed;PAS Level(0-9);TRIP/ODO;Headlight;Walk;Cruise;Mile/Km；Erro Alarm;Parameters setting;USB;Battery Level

Protocol:UART/SPI/I2C

Installation:ø22.2/ø25.4/ø31.8

Supply voltage:24V/36V/48V/60V/72V

Certification:GB/T19001-2008/CE/ROHS/IP65

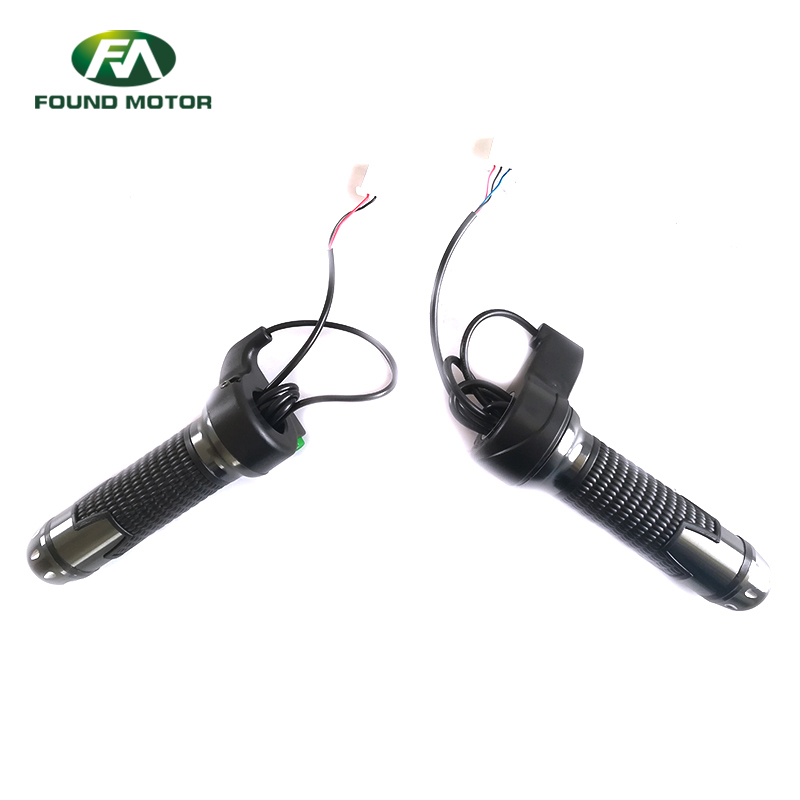

Throttle specifications

Model:FD-004

Cable length:1500mm

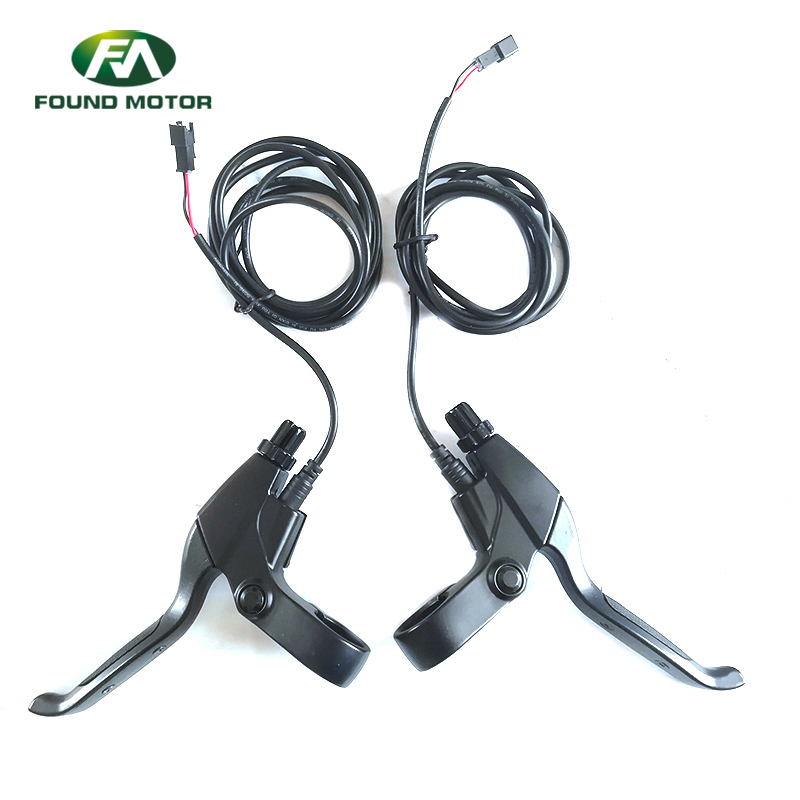

Brake lever specifications

Model:KB-040

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1200mm

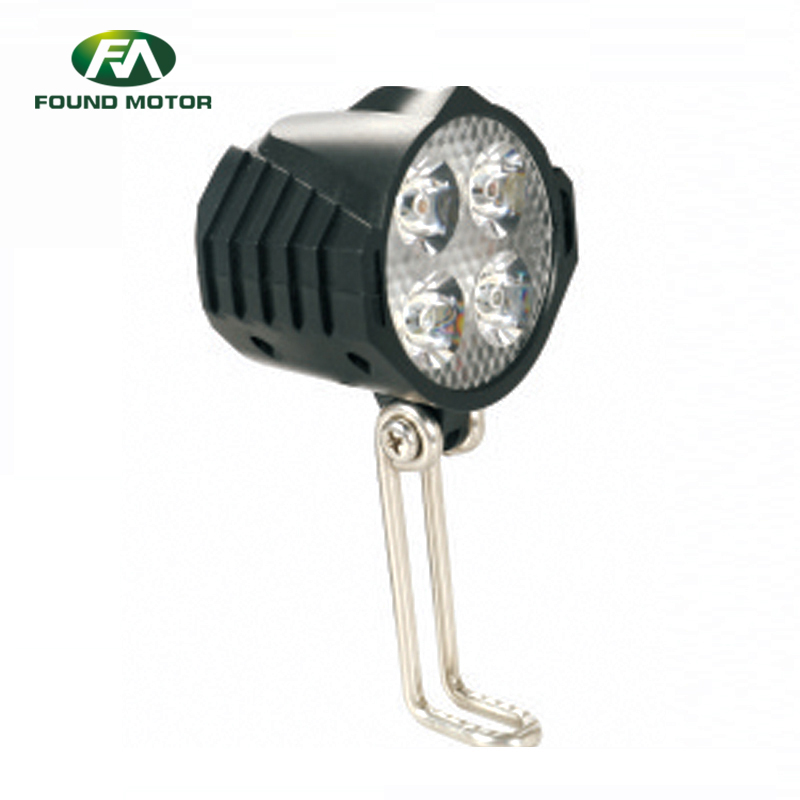

Front light specifications

1.Model:D-021

2.Approvals: RoHs

3.Size: L: 50mm W: 62mm H: 73mm

4.Lumen: 280lm-300lm

5.Waterproof: IP54

6.Materials: ABS

7.Wiring: 3 cores

8.Power: Working Voltage: 48V

9.Output Current: 3V-9V

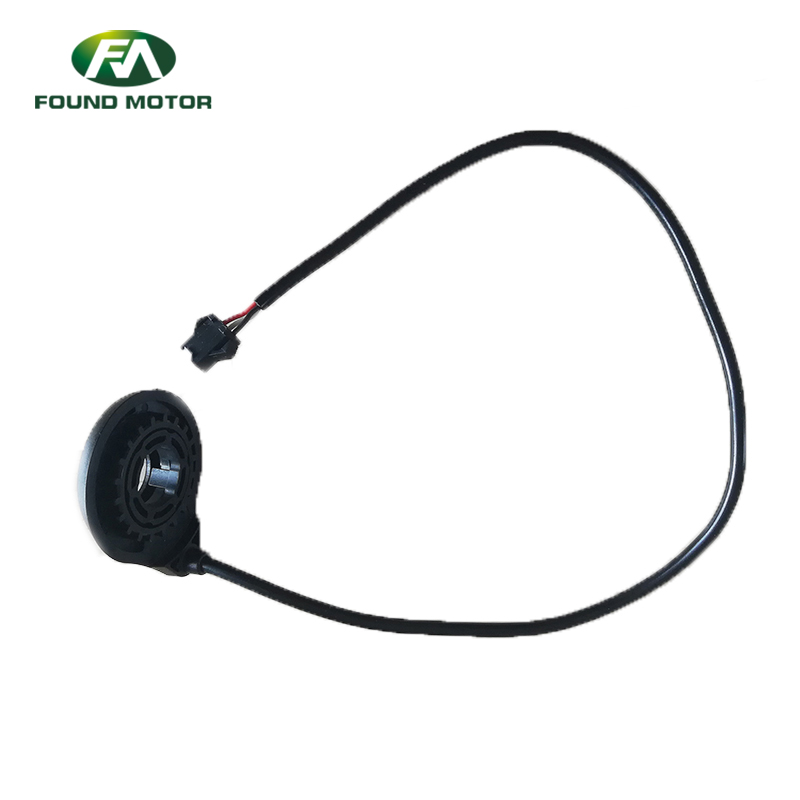

PAS specifications

Model:GP-001

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
