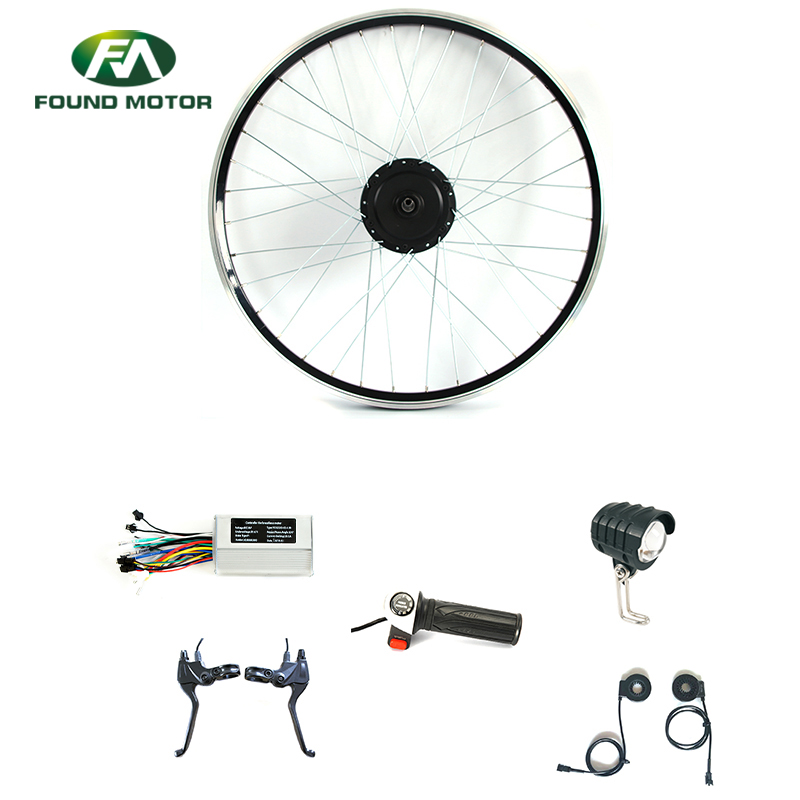

26'' 48V 350W Electric Bike Conversion Kit with Battery Indicate Throttle Electric Bike Accessories

26'' 48V 350W Electric Bike Conversion Kit with Battery Indicate Throttle Electric Bike

Accessories

Motor specifications

Rear drive motor

1.Wheel size:26” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V

3.Watt:180W/250W/350W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.

Controller specifications

1.Size: 140mm x 65mm x 35mm/88mm x 50mm x 30mm
2.Rated Voltage: DC24V/DC36V/DC48V/DC64

3.Rated Power: 180W-500W
4.Law Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA
6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor /Sensarless Motor

9.Display Matching: LED Display/LCD Display

Throttle specifications

1.Throttle with battery indicate, normal connector.
2.Twist throttle,half twist throttle optional.
3.Power lock with key,power buttun optional.
4.Different kinds grips can be provided.

5.Cable length: 1500mm

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1200mm

Front light specifications

1.Model: D-022

2.Approvals: GB17761

3.Size: L: 54mm W: 58mm H: 103mm

4.Lumen: 130lm-150lm

5.Waterproof: IP54

6.Materials: ABS

7.Wiring: 3 cores

8.Power: Working Voltage: 48V

9.Output Current: 40mA-60mA

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
