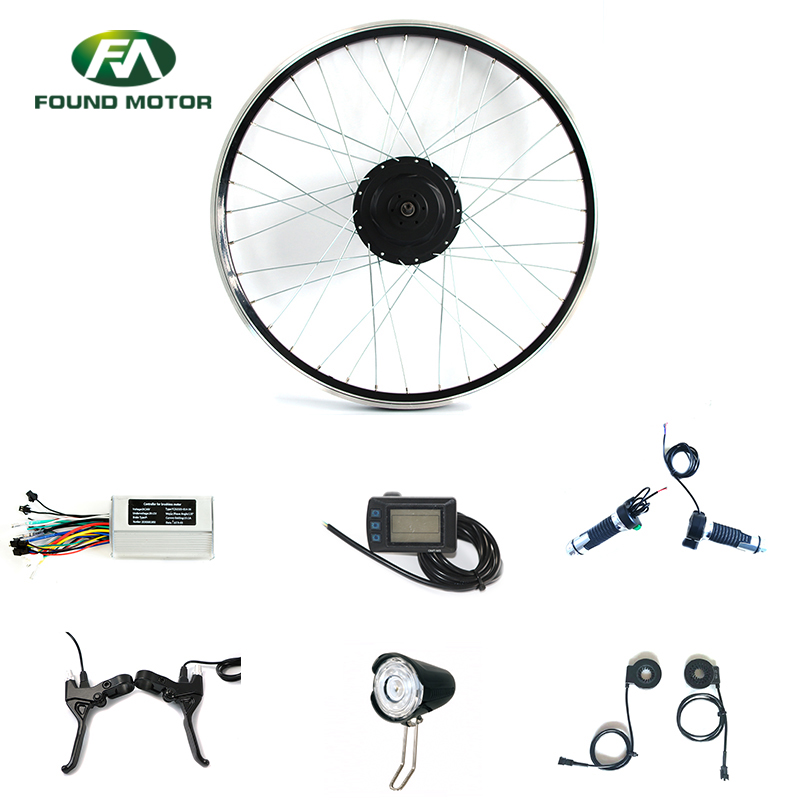

22'' 48V 350W Electric Bike Conversion Kits E-Bike Hub Motor Kit with Optional Brake Lever

22'' 48V 350W Electric Bike Conversion Kits E-Bike Hub Motor Kit with Optional Brake Lever

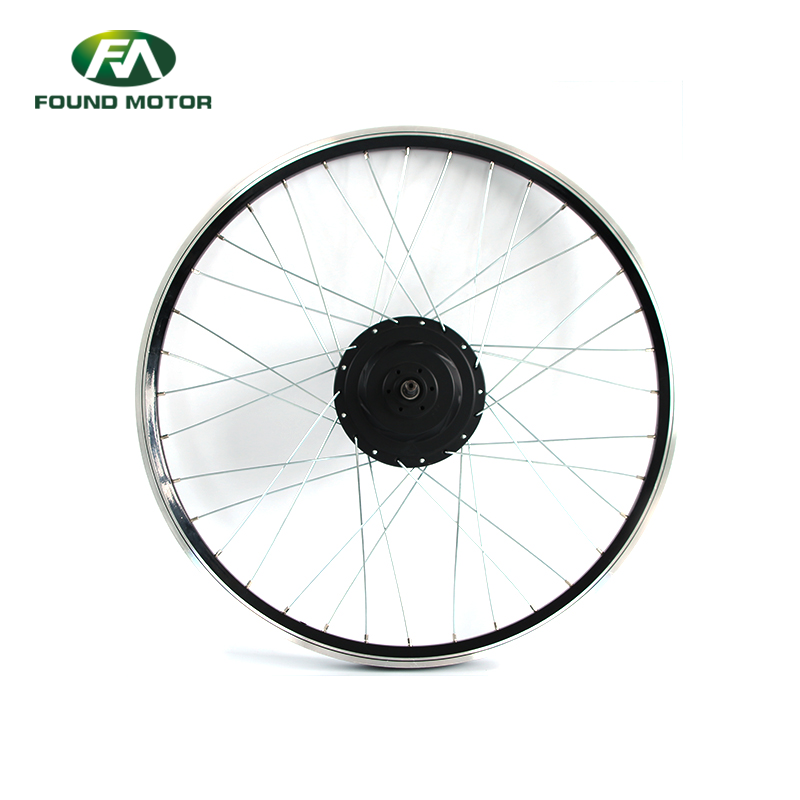

Motor specifications

Front drive motor

1.Wheel size:22''

2.Voltage:48V

3.Watt:350W

4.Speed:10-40Km/h

5.Dropout(open size): 100mm

6.Motor wire :right side,200mm waterproof connector/normal cable is optional

7.Disk motor cover , left side.

8.Color:black,silver optional.

Rear drive motor

1.Wheel size:22''

2.Voltage:48V

3.Watt:350W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8.Disk motor cover , left side.

9.Color:black,silver optional.

Controller specifications

1.Size: 140mm x 65mm x 35mm
2.Rated Voltage: DC48V
3.Rated Power: 350W
4.Law Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA
6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor /Sensarless Motor
9.Display Matching: LED Display/LCD Display

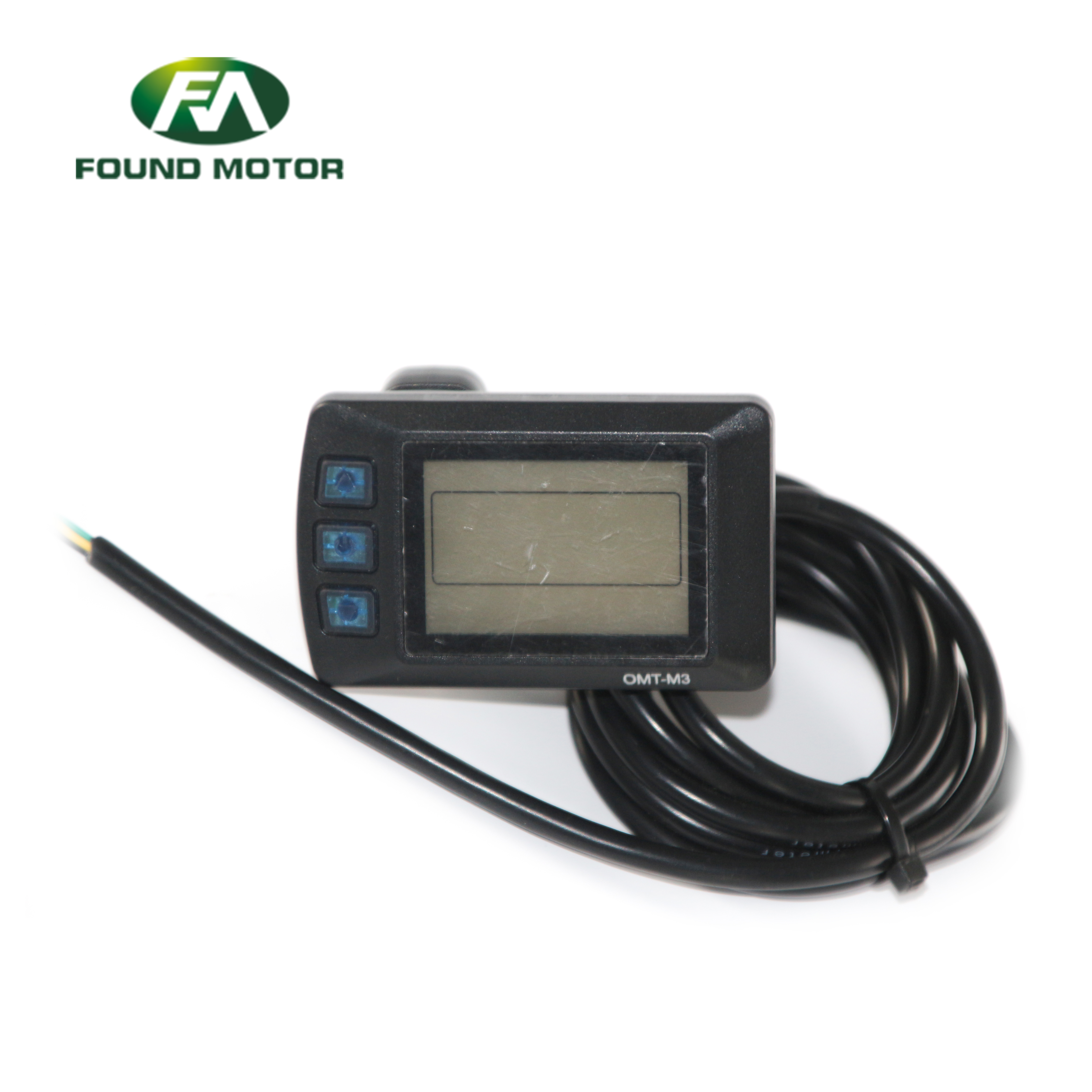

Display specifications

1.Model:M3

2.Dimentin:107mm*62mm*28mm

3.Fuction:Speed;PAS Level(0-9);TRIP/ODO;Headlight;Walk;Cruise;Mile/Km；Erro Alarm;Parameters setting;USB;Battery Level

4.Protocol:UART/SPI/I2C

5.Installation:ø22.2/ø25.4/ø31.8

6.Supply voltage:24V/36V/48V/60V/72V

7.Certification:GB/T19001-2008/CE/ROHS/IP65

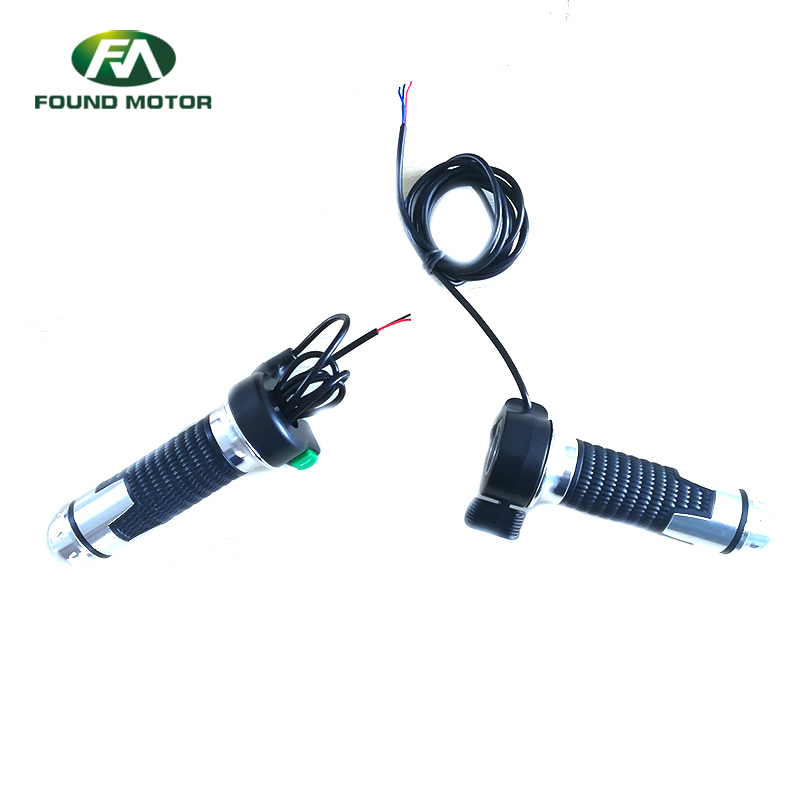

Throttle specifications

1.Throttle with normal connector.
2.Twist throttle,half twist throttle optional.
3.Different kinds grips can be provided.

4.Cable length: 1500mm

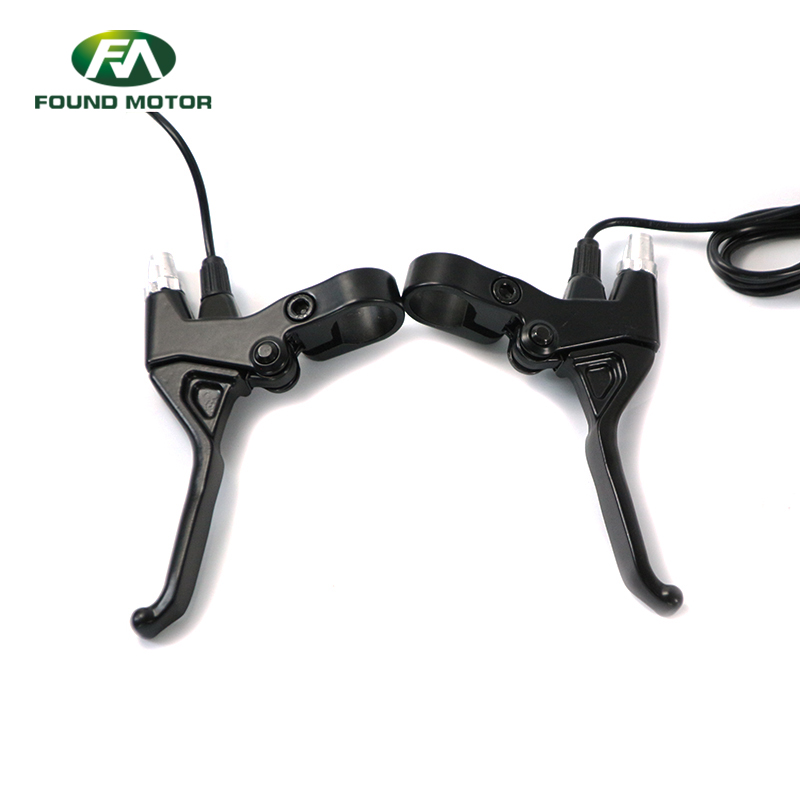

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm

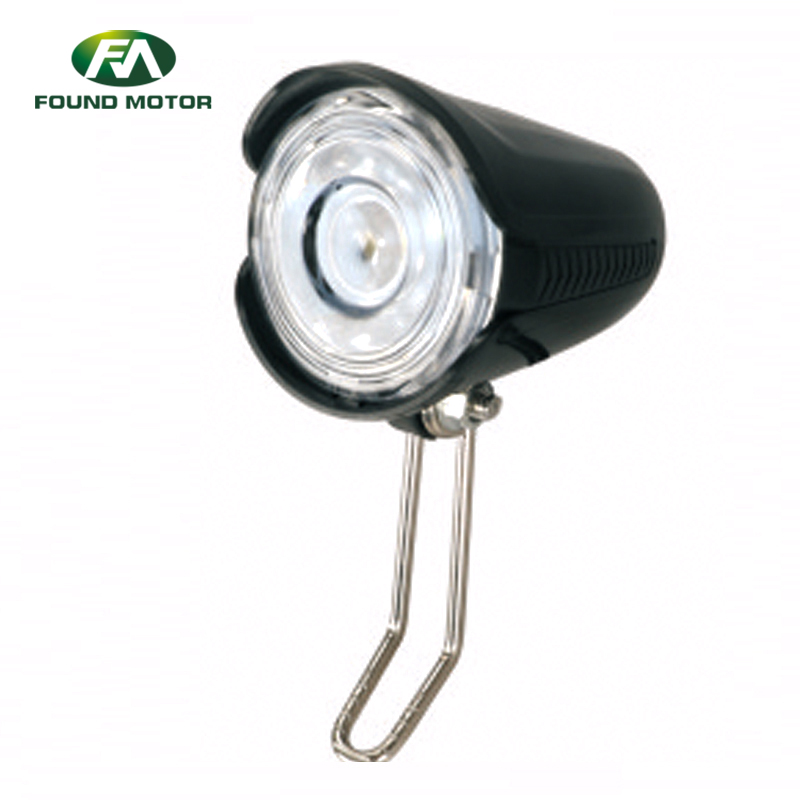

Front light specifications

1.Model:D-018

2.Approvals: RoHs

3.Size: L: 74mm W: 52mm H: 55mm

4.Lumen: 110lm-130lm

5.Waterproof: IP54

6.Materials: ABS

7.Wiring: 3 cores

8.Power: Working Voltage: 48V

9.Output Current: 350mA

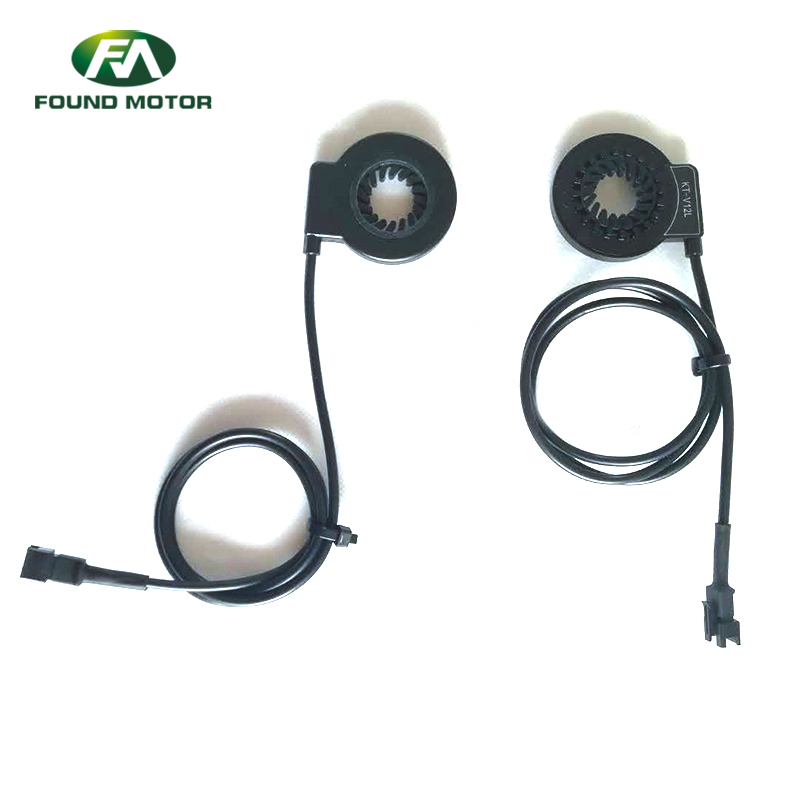

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
