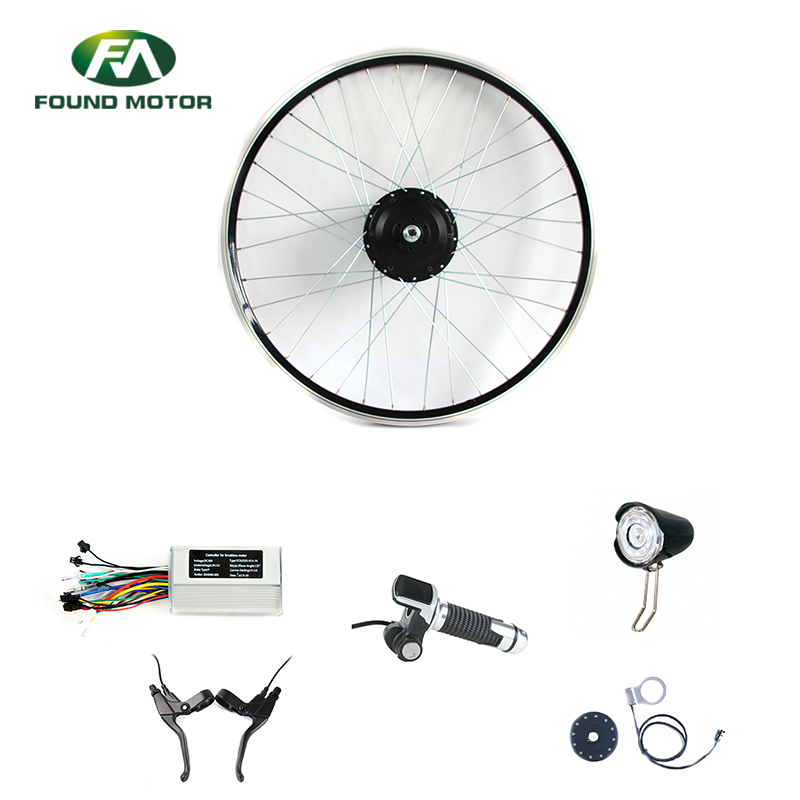

48V 350W Electric Bike kit Bicycle Conversion Front Rear Motor Wheel Ebike Kit

48V 350W Electric Bike kit Bicycle Conversion Front Rear Motor Wheel Ebike Kit

Motor specifications

Rear drive motor

1.Wheel size: 26” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage: 48V

3.Watt: 350W

4.Speed:10-40Km/h

5.Freewheel:single speed freewheel

6.Dropout(open size): 125mm

7.Motor wire :right side,Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.

Front drive motor

1.Wheel size:26” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage: 48V

3.Watt: 350W

4.Speed:10-40Km/h

5.Dropout(open size): 100mm

6.Motor wire :right side,Cable length is customized(200mm-1300mm)

7.Disk motor cover , left side.

8.Color:black,silver optional.

Controller specifications

1.Size: 140mm x 65mm x 35mm/88mm x 50mm x 30mm
2.Rated Voltage: DC48V

3.Rated Power: 180W-500W
4.Law Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA
6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor /Sensarless Motor

9.Display Matching: LED Display/LCD Display

Throttle specifications

1.Throttle with battery indicate,normal connector.
2.Twist throttle,half twist throttle optional.
3.Different kinds grips can be provided.

4.Cable length: 1500mm

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm

Front light specifications

1.Model:D-018

2.Approvals: RoHs

3.Size: L: 74mm W: 52mm H: 55mm

4.Lumen: 110lm-130lm

5.Waterproof: IP54

6.Materials: ABS

7.Wiring: 3 cores

8.Power: Working Voltage: 48V

9.Output Current: 350mA

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
