Electric bike conversion kit with S850 display for electric bike and electric bicycle

Electric bike conversion kit with S850 display for electric bike and electric bicycle

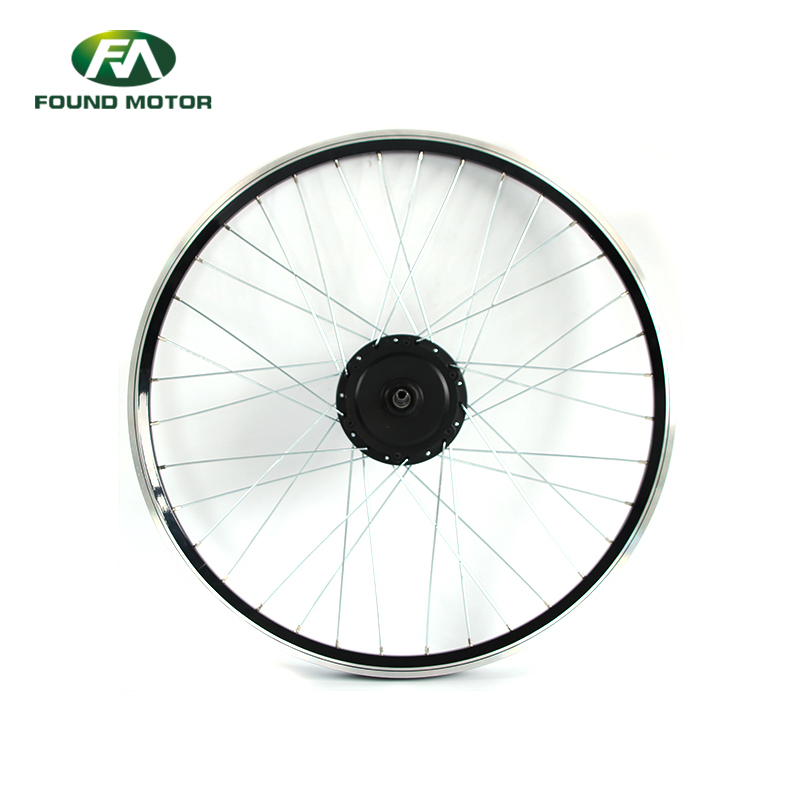

Motor specifications

Rear drive motor

1.Wheel size:26”  (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V

3.Watt:180W/250W/350W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.

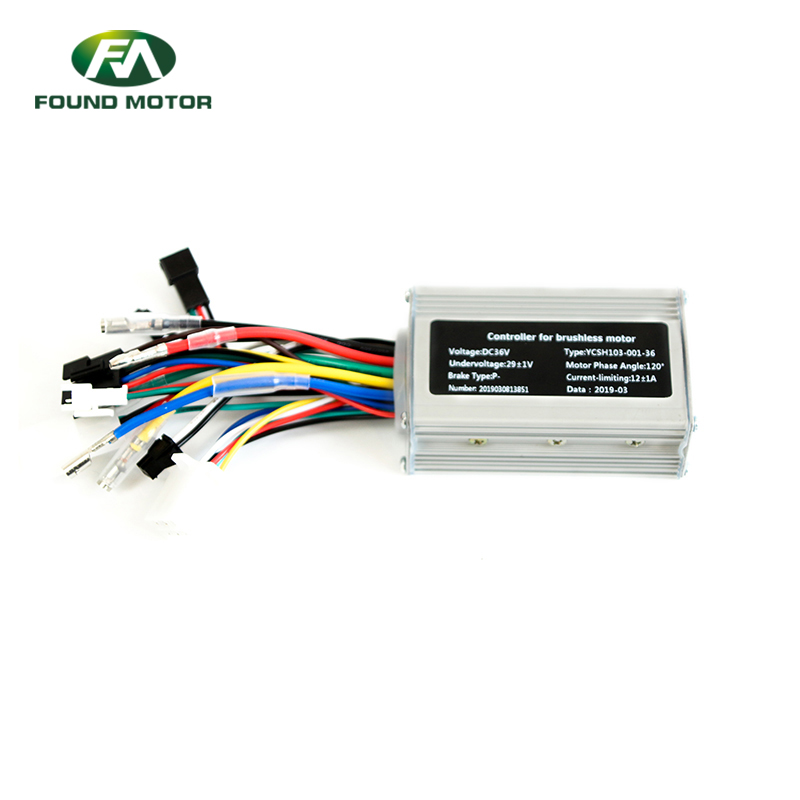

Controller specifications

1.Size: 140mm x 65mm x 35mm/88mm x 50mm x 30mm
2.Rated Voltage: DC36V/DC48V/DC64V
3.Rated Power: 180W-500W
4.Low Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA

6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor
9.Display Matching: LED Display/ LCD Display

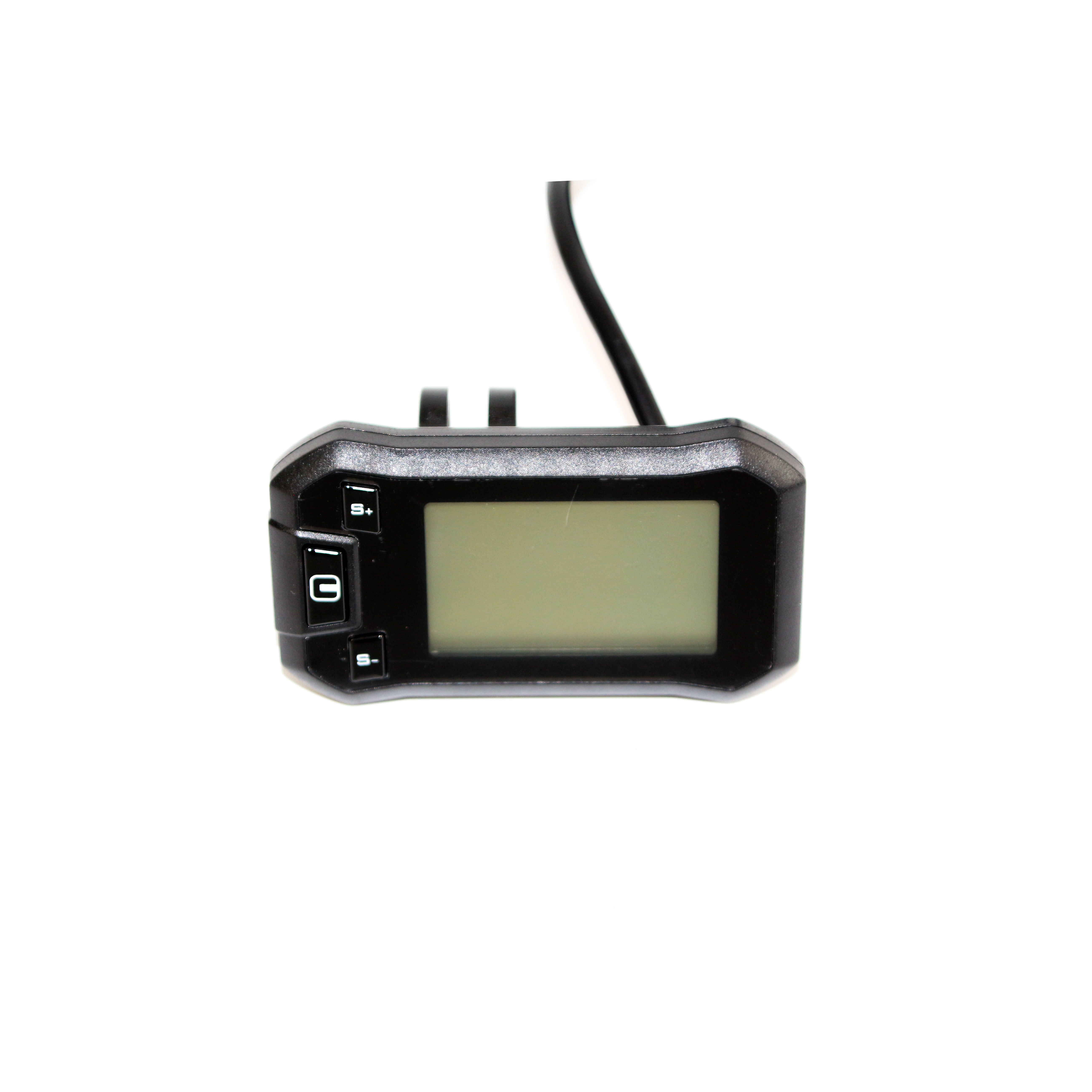

Display specifications

Model:S850

Size:48.1mmx82.1mmx12.5mm

Functions:PAS Level Speed;Trip/ODO/Headlight;Walk;Mile/KM/Error Alarm

Communication:UART

Holder:22.2mm

Voltage:24V/36V/48V

Certificate:CE/ROHS/IP65

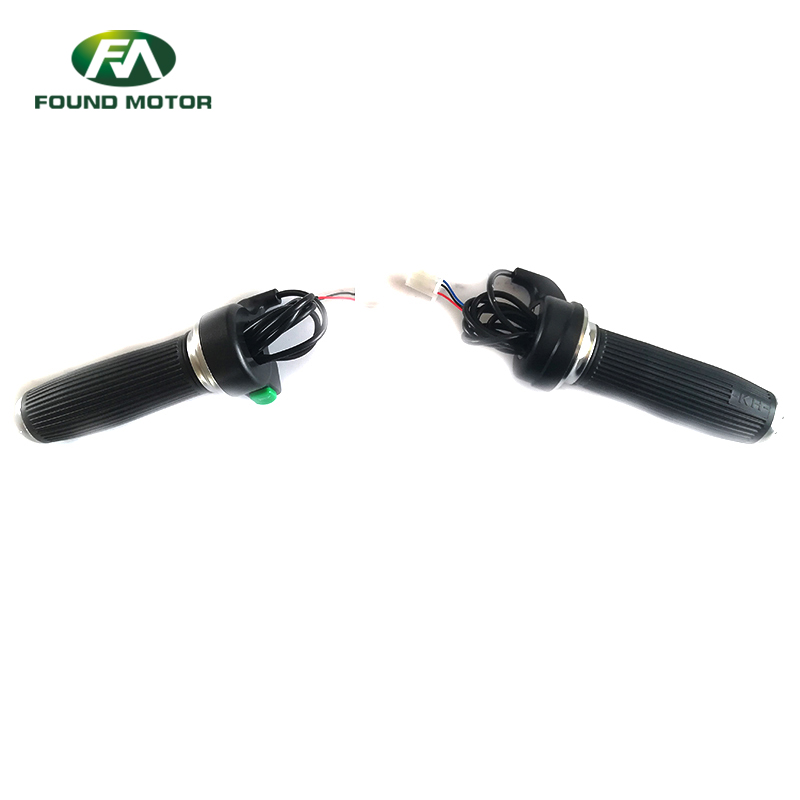

Throttle specifications

Model:FD-001
1.Throttle with normal connector.
2.Twist throttle,half twist throttle optional.
3.Different kinds grips can be provided.

4.Cable length: 1500mm

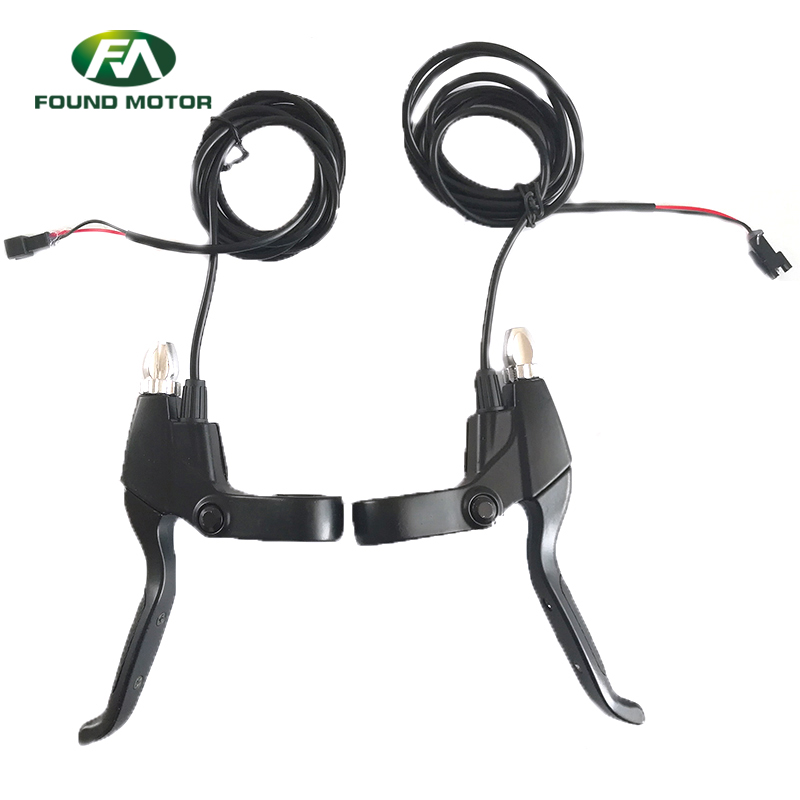

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1450mm

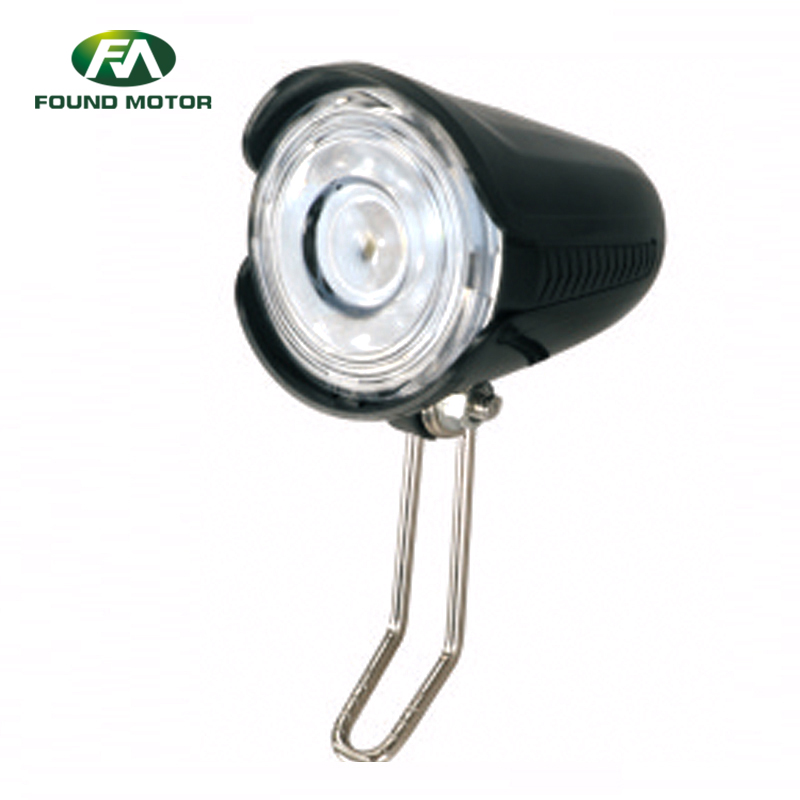

Front light specifications

Model:D-023

Mode number:D-022

Cable length:145mm     optional

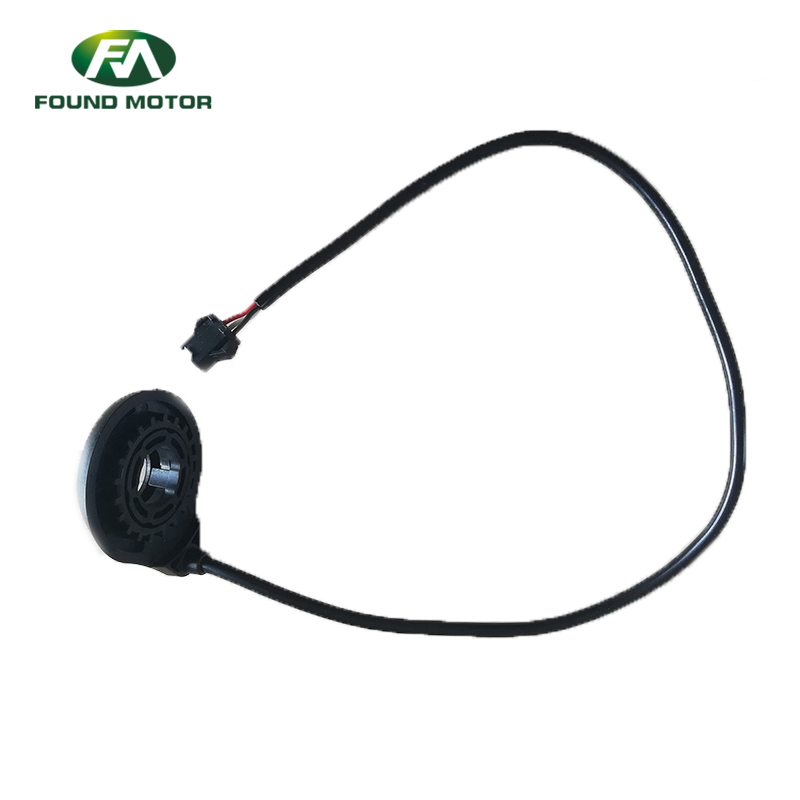

PAS specifications

Model:GP-001

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
