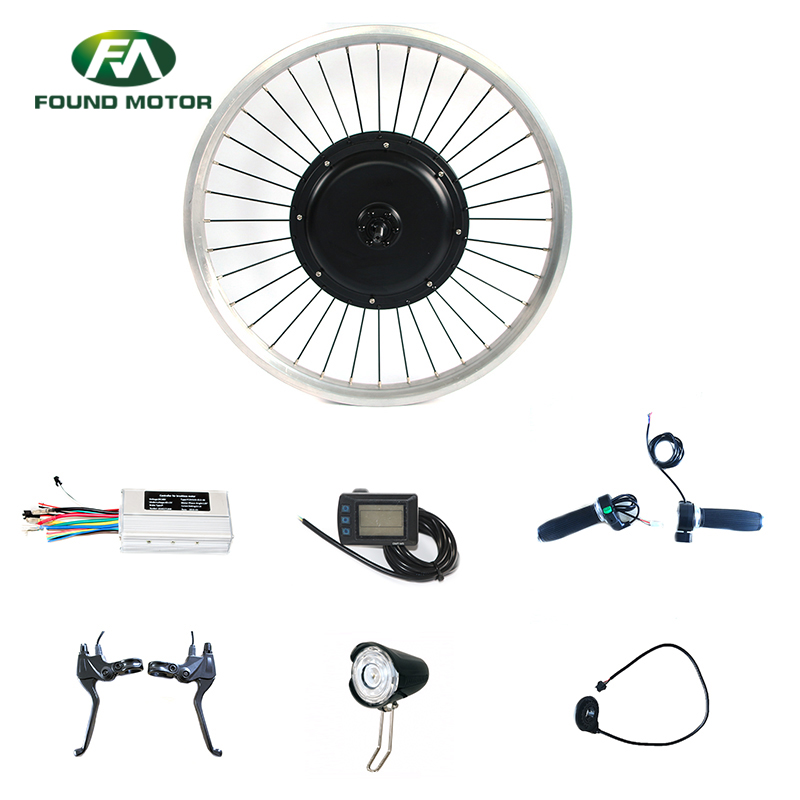

Electric Bicycle Bike 48V 750W Brushless DC Motor Conversion Kit

Electric Bicycle Bike 48V 750W Brushless DC Motor Conversion Kit

Motor specifications

Rear drive motor

1.Wheel size:24” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V/52V/60V

3.Watt:250W/350W/500W/750W/1000W

4.Speed:10-60Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :left side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.

Front drive motor

1.Wheel size:24” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V/52V/60V

3.Watt:250W/350W/500W/750W/1000W

4.Speed:10-60Km/h

5.Dropout(open size): 100mm

6.Motor wire :left side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

7..Disk motor cover , left side.

8.Color:black,silver optional.

Controller specifications

1.Size: 88mm x 50mm x 30mm
2.Rated Voltage: DC48V
3.Rated Power: 500W
4.Law Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA
6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor /Sensarless Motor
9.Display Matching: LED Display/LCD Display

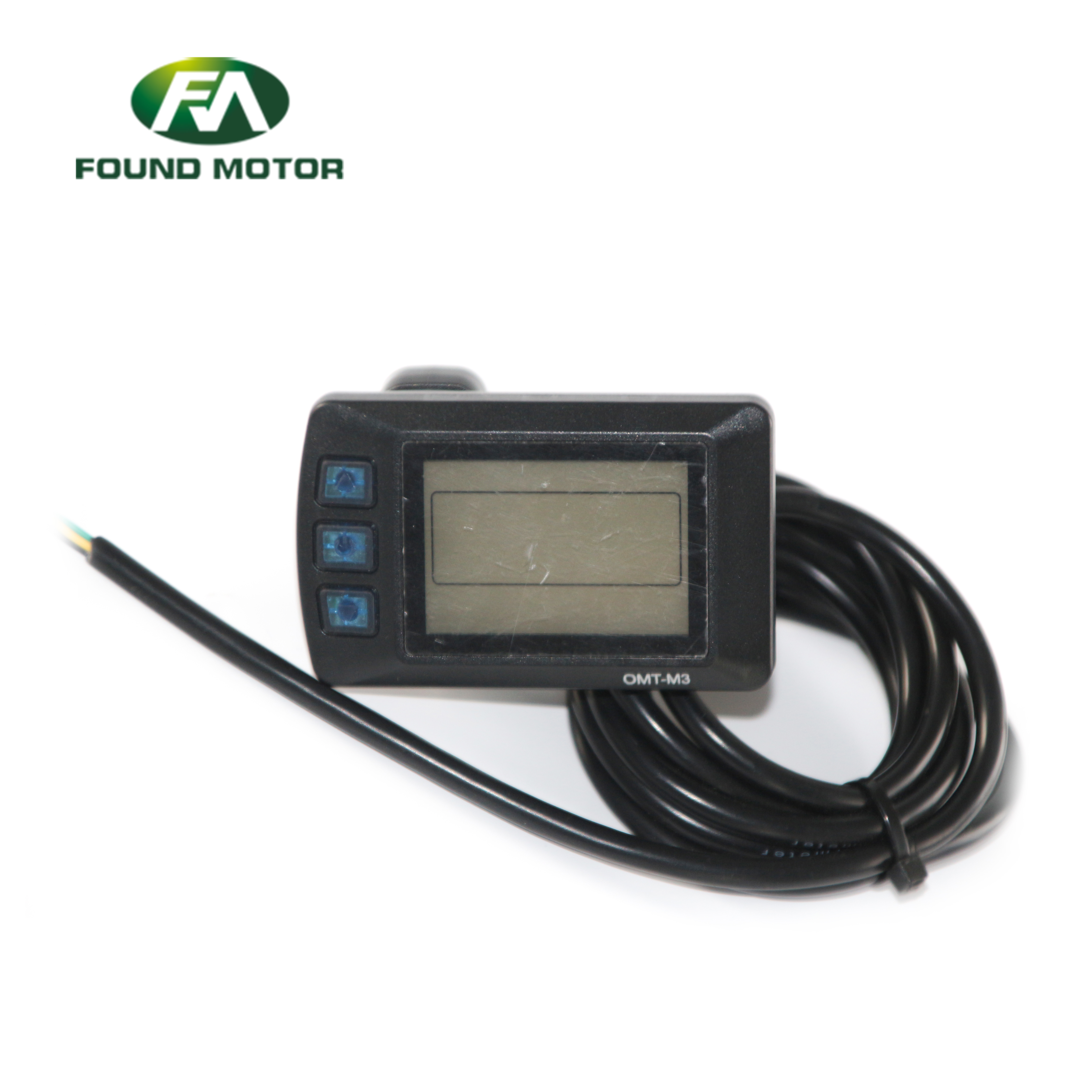

Display specifications

1.Model:M3

2.Dimentin:107mm*62mm*28mm

3.Fuction:Speed;PAS Level(0-9);TRIP/ODO;Headlight;Walk;Cruise;Mile/Km；Erro Alarm;Parameters setting;USB;Battery Level

4.Protocol:UART/SPI/I2C

5.Installation:ø22.2/ø25.4/ø31.8

6.Supply voltage:24V/36V/48V/60V/72V

7.Certification:GB/T19001-2008/CE/ROHS/IP65

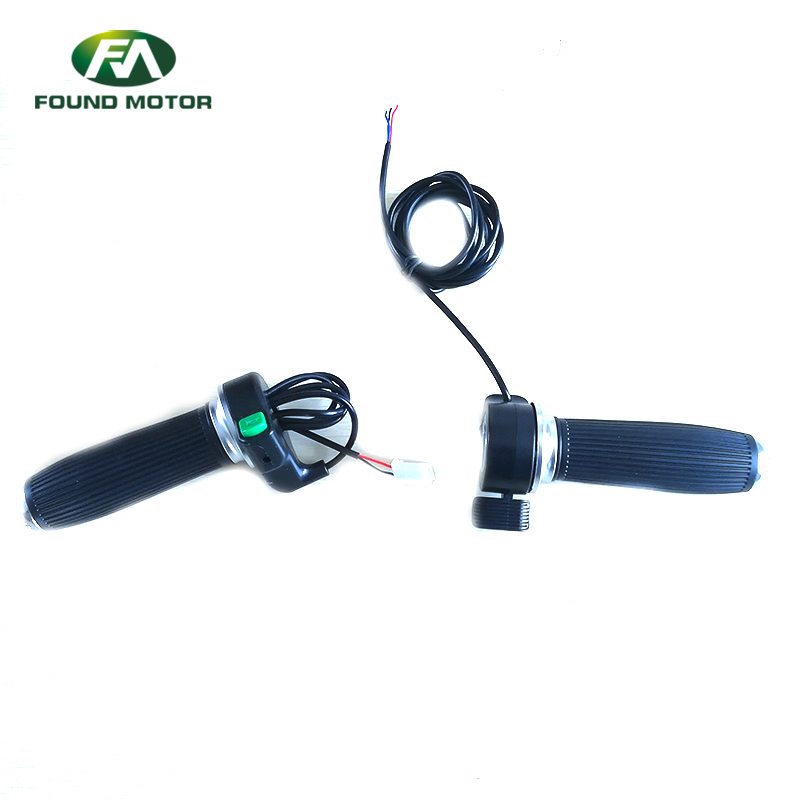

Throttle specifications

1.Cable length: 1000mm

2.Throttle with normal connector

3.Twist throttle,half twist throttle and thumb throttle optional.

4.Different kinds grips can be provided.

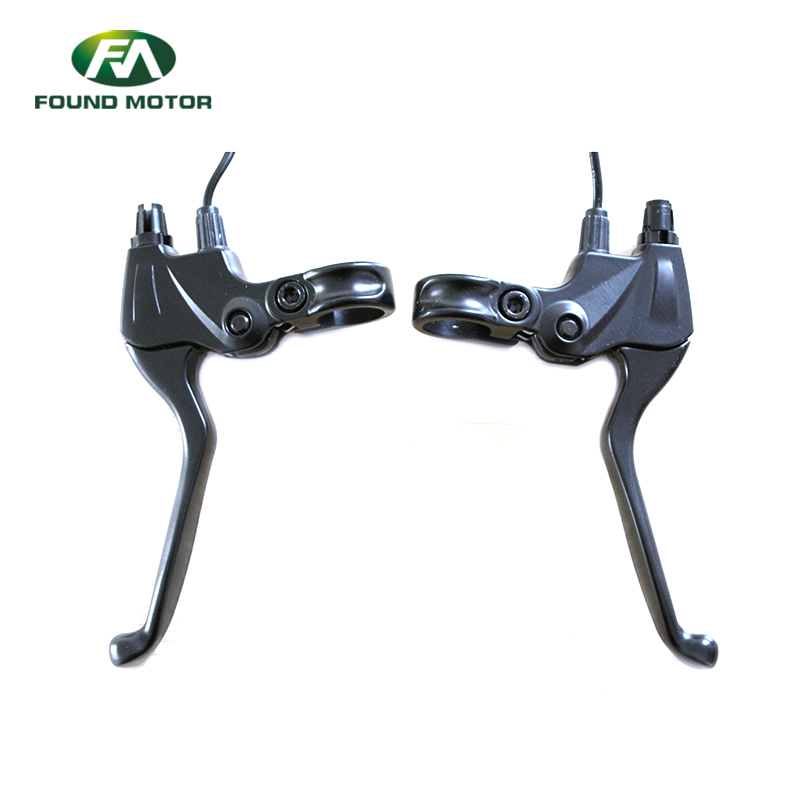

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm

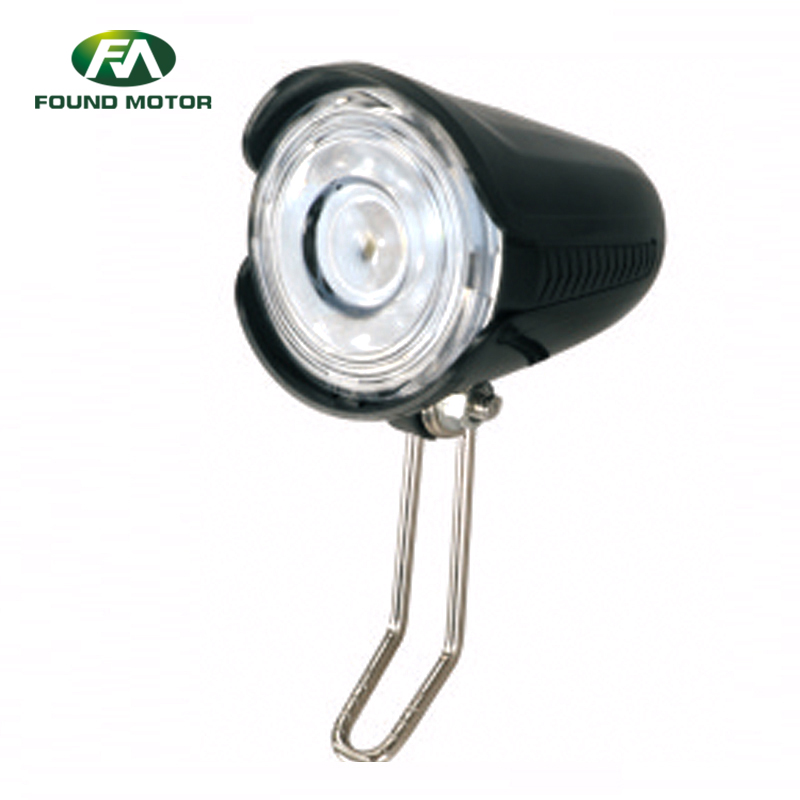

Front light specifications

1.Model:D-018

2.Approvals: RoHs

3.Size: L: 74mm W: 52mm H: 55mm

4.Lumen: 110lm-130lm

5.Waterproof: IP54

6.Materials: ABS

7.Wiring: 3 cores

8.Power: Working Voltage: 48V

9.Output Current: 350mA

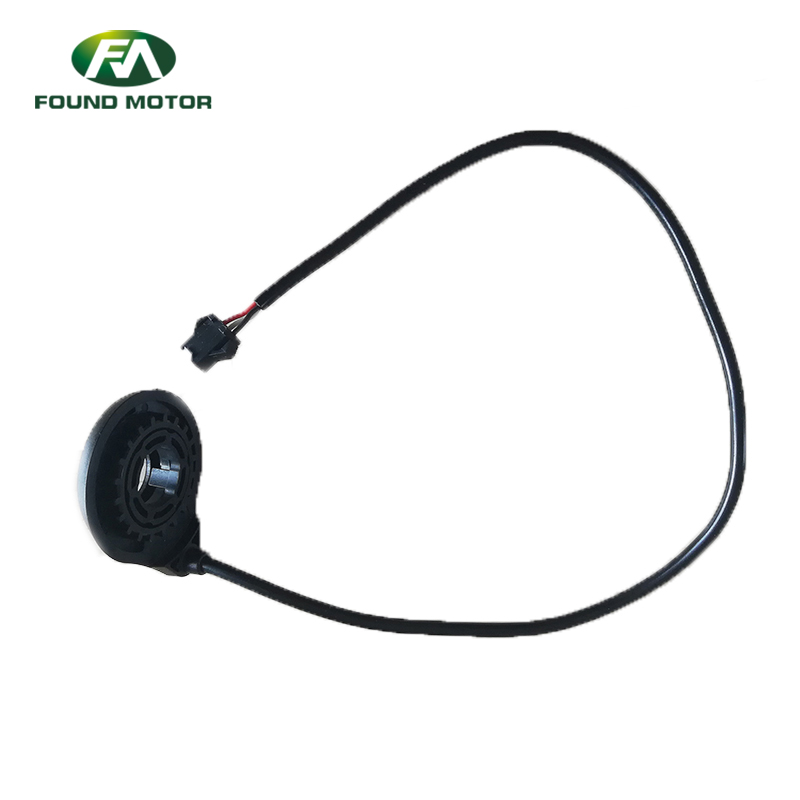

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
