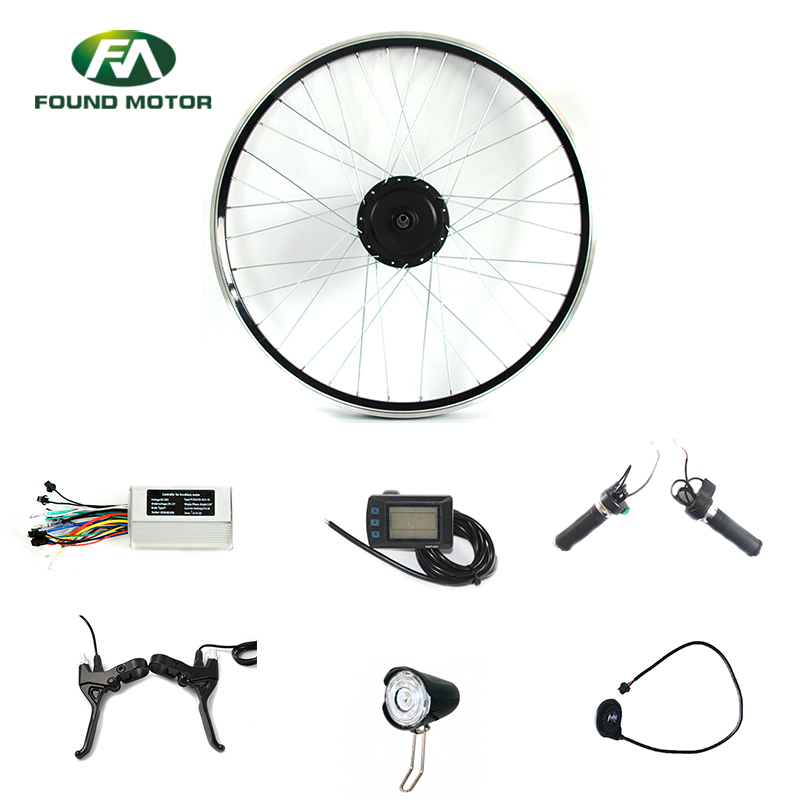

48V 350W Electric Bike Conversion Kit with LCD/LED Display

48V 350W Electric Bike Conversion Kit with LCD/LED Display

Motor specifications

Rear drive motor

1.Wheel size:26” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V

3.Watt:180W/250W/350W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.

Controller specifications

1.Size 140mm x 65mm x 35mm/88mm x 50mm x 30mm
2.Rated Voltage DC36V/DC48V/DC64V
3.Rated Power 180W- 500W
4.Low Voltage protection 12A-22A
5.Standby Power Consumption <50mA
6.Housing Materials Aluminum
7.Water Proof IPX6
8.Motor Matching Sensored Motor
9.Display Matching LED Display/ LCD Display

Display specifications

1.Model:M3

2.Dimentin:107mm*62mm*28mm

3.Fuction:Speed;PAS Level(0-9);TRIP/ODO;Headlight;Walk;Cruise;Mile/Km；Erro Alarm;Parameters setting;USB;Battery Level

4.Protocol:UART/SPI/I2C

5.Installation:ø22.2/ø25.4/ø31.8

6.Supply voltage:24V/36V/48V/60V/72V

7.Certification:GB/T19001-2008/CE/ROHS/IP65

Throttle specifications

1.Throttle with normal connector.
2.Twist throttle,half twist throttle optional.
3.Cable length: 1500mm

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1200mm

Front light specifications

1.Model:D-018

2.Approvals: RoHs

3.Size: L: 74mm W: 52mm H: 55mm

4.Lumen: 110lm-130lm

5.Waterproof: IP54

6.Materials: ABS

7.Wiring: 3 cores

8.Power: Working Voltage: 48V

9.Output Current: 350mA

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
