Electric Bike Conversion Kit

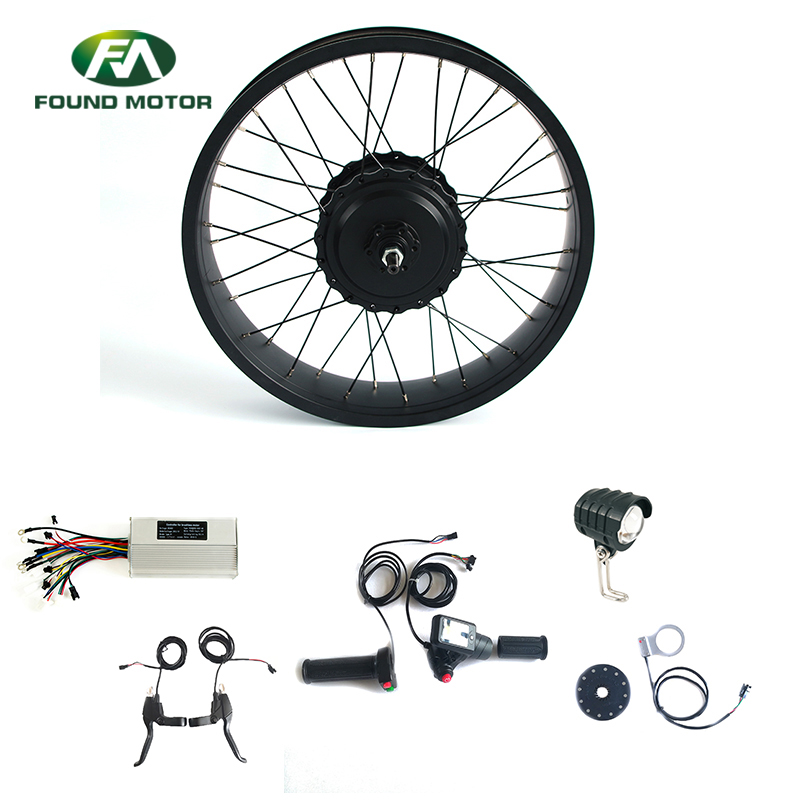

36V 350W BLDC geared Motor Electric Bike Conversion Kit with optional front light

FOUND MOTOR
Electric bike conversion kit
Voltage: 24V/36V/48V
Watt: 350W-1000W
Description: 36V 350W BLDC geared Motor Electric Bike Conversion Kit with optional front light
Inquiry

36V 350W BLDC geared Motor Electric Bike Conversion Kit with optional front light

Motor specifications

Front drive motor

1.Wheel size:20” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:36V/48V/52V/60V

3.Watt:350W/500W/750W/1000W

4.Speed:10-60Km/h

5.Dropout(open size): 170mm/180mm/190mm

6.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

7..Disk motor cover , left side.

8.Color:black,silver optional.

Controller specifications

Size 140mm x 65mm x 35mm/88mm x 50mm x 30mm
Rated Voltage DC36V/DC48V/DC64V
Rated Power 180W-500W
Low Voltage protection 12A-22A
Standby Power Consumption <50mA
Housing Materials Aluminum
Water Proof IPX6
Motor Matching Sensored Motor
Display Matching LED Display/ LCD Display
Size 190mm x 82mm x 40mm
Rated Voltage DC36V/DC48V/DC64V/DC72V
Rated Power 350W- 1200W
Low Voltage protection 25A-35A
Standby Power Consumption <50mA
Housing Materials Aluminum
Water Proof IPX6
Motor Matching Sensored Motor
Display Matching LED Display/LCD Display
