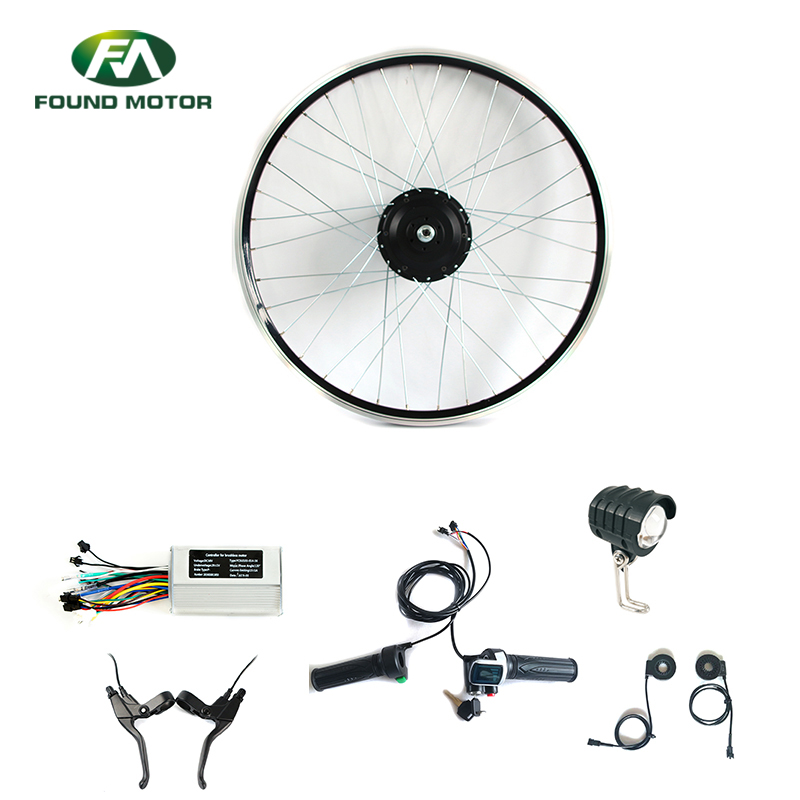

26'' 48V 500W BLDC Geared Motor Kit Electric Bike Bicycle Converison Kit with Optional Front Light

26'' 48V 500W BLDC Geared Motor Kit Electric Bike Bicycle Converison Kit with Optional Front Light

Motor specifications

Rear drive motor

1.Wheel size:26”

2.Voltage:48V

3.Watt:500W

4.Speed:10-40Km/h

5.Freewheel:single speed freewheel

6.Dropout(open size): 125mm

7.Motor wire :right side,cable length is customized(200mm-1300mm)

8.Disk motor cover , left side.

9.Color:black,silver optional.

Front drive motor

1.Wheel size:26”

2.Voltage:48V

3.Watt:500W

4.Speed:10-40Km/h

5.Dropout(open size): 100mm

6.Motor wire :right side,Cable length is customized(200mm-1300mm)

7.Disk motor cover , left side.

8.Color:black,silver optional.

Controller specifications

1.Size: 140mm x 65mm x 35mm
2.Rated Voltage:DC48V
3.Rated Power: 500W
4.Low Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA
6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor
9.Display Matching: LED Display/ LCD Display

Throttle specifications

1.Throttle with battery indicate,normal connector.
2.Twist throttle,half twist throttle optional.
3.Different kinds grips can be provided.

4.Cable length: 1200mm

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1200mm

Front light specifications

1.D-022
2.Approvals: GB17761
3.Size: L: 54mm W: 58mm H: 103mm
4.Lumen: 130lm-150lm
5.Waterproof: IP54
6.Materials: ABS
7.Wiring: 3 cores
8.Power: Working Voltage: 48V
9.Output Current: 40mA-60mA

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
