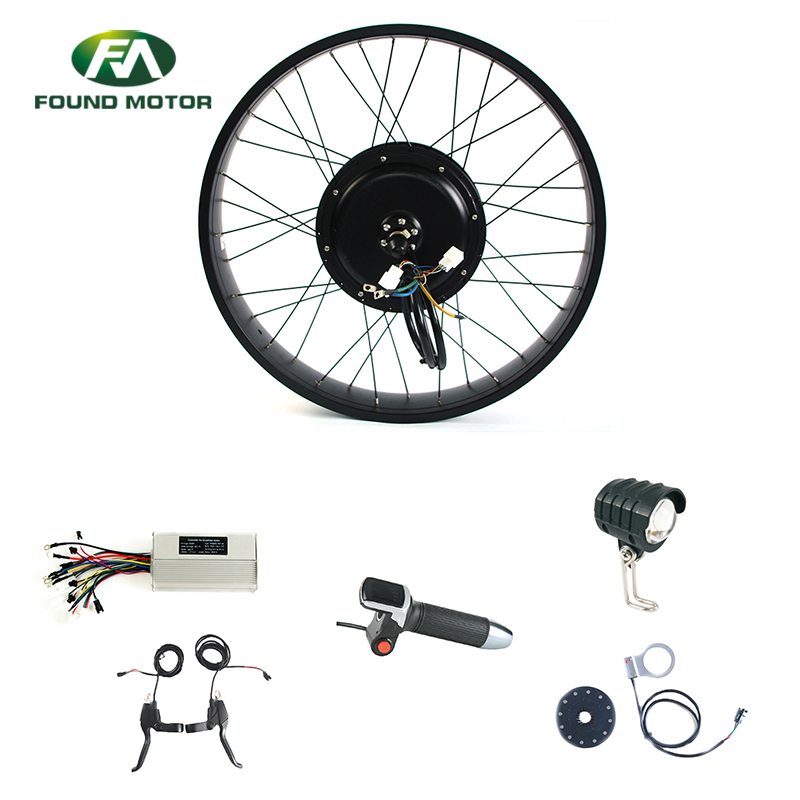

Electric Bike Conversion Kit DSDX -1+1838 Throttle With FOC-12 controller For Electric Bike And Electric Bicycle

Electric Bike Conversion Kit DSDX -1+1838 Throttle With FOC-12
controller For Electric Bike And Electric Bicycle

Motor specifications

Rear drive motor

1.Wheel size:26”  (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:48V/52V/60V/72V/84V/96V

3.Watt:500W/750W/1000W/1500W/2000W/3000W/4000W/5000W

4.Speed:10-100Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 170mm/180mm/190mm

7.Motor wire :left side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.

Front drive motor

1.Wheel size:26”  (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:48V/52V/60V/72V/84V/96V

3.Watt:500W/750W/1000W/1500W/2000W/3000W/4000W/5000W

4.Speed:10-100Km/h

5.Dropout(open size): 170mm/180mm/190mm

6.Motor wire :left side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

7..Disk motor cover , left side.

8.Color:black,silver optional.

Controller specifications

Size                      140mm x 65mm x 35mm/88mm x 50mm x 30mm
Rated Voltage                      DC36V/DC48V/DC64V
Rated Power                           180W-500W
Low Voltage protection                    12A-22A
Standby Power Consumption               <50mA
Housing Materials                        Aluminum
Water Proof                               IPX6
Motor Matching                       Sensored Motor
Display Matching                  LED Display/ LCD Display
Size                            190mm x 82mm x 40mm
Rated Voltage                   DC36V/DC48V/DC64V/DC72V
Rated Power                         350W- 1200W
Low Voltage protection                  25A-35A
Standby Power Consumption              <50mA
Housing Materials                      Aluminum
Water Proof                              IPX6
Motor Matching                       Sensored Motor
Display Matching                  LED Display/LCD Display

Throttle specifications

Model:DSDX-1+1838
1.Throttle with normal connector.
2.Twist throttle,half twist throttle optional.
3.Different kinds grips can be provided.

4.Cable length: 1500mm

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm

Front light specifications

1.Front light with normal connector.
2.Front light optional.

3.Cable length: 1500mm

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
