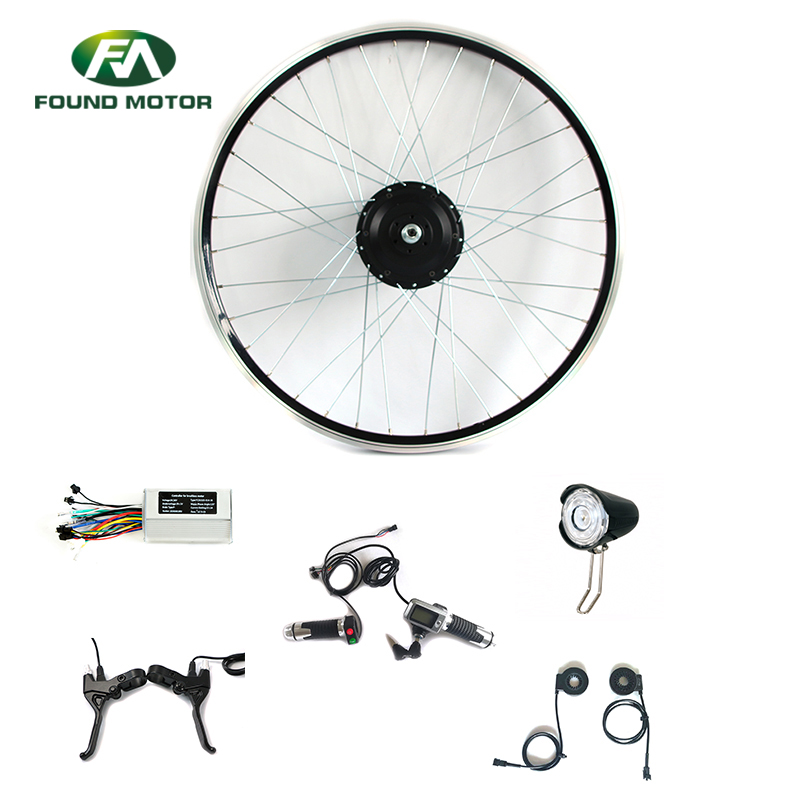

26'' 48V 500W Electric Bike Converison Kit with Electric Bike Controller

26'' 48V 500W Electric Bike Converison Kit with Electric Bike Controller

Motor specifications

Rear drive motor

1.Wheel size:26” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V

3.Watt:180W/250W/350W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.

Controller specifications

1.Size 140mm x 65mm x 35mm/88mm x 50mm x 30mm
2.Rated Voltage DC24V/DC36V/DC48V/DC64

3.Rated Power 180W-500W
4.Law Voltage protection 12A-22A
5.Standby Power Consumption <50mA
6.Housing Materials Aluminum
7.Water Proof IPX6
8.Motor Matching Sensored Motor /Sensarless Motor

9.Display Matching LED Display/LCD Display

Throttle specifications

1.Throttle with power display,normal connector.
2.Twist throttle,half twist throttle optional.
3.Different kinds grips can be provided.

4.Cable length: 1200mm

5.Power lock with key,power buttun optional.

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm

Front light specifications

1.Model:D-018

2.Approvals: RoHs

3.Size: L: 74mm W: 52mm H: 55mm

4.Lumen: 110lm-130lm

5.Waterproof: IP54

6.Materials: ABS

7.Wiring: 3 cores

8.Power: Working Voltage: 48V

9.Output Current: 350mA

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
