26'' 48V 350W Electric Bike Conversion Kit with Optional Throttle

26'' 48V 350W Electric Bike Conversion Kit with Optional Throttle

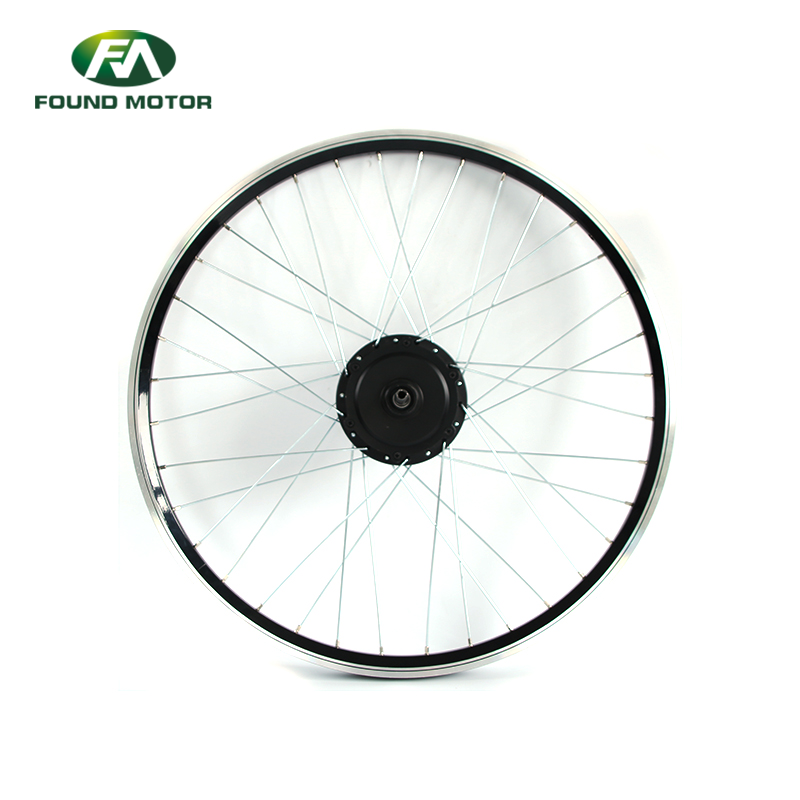

Motor specifications



Rear drive motor

1.Wheel size:26” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V

3.Watt:180W/250W/350W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.

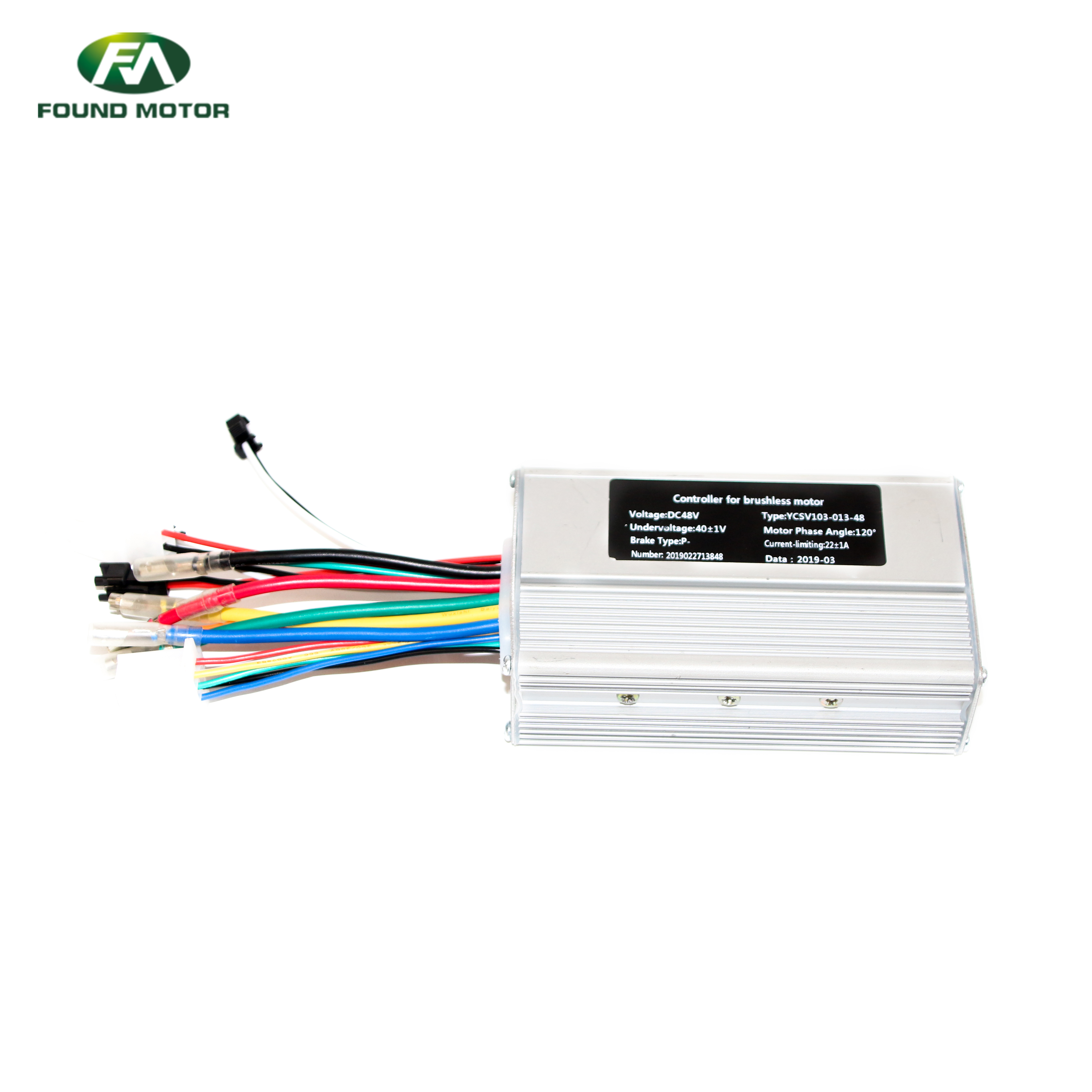

Controller specifications

1.Size: 88mm x 50mm x 30mm
2.Rated Voltage: DC48V
3.Rated Power: 500W
4.Law Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA
6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor /Sensarless Motor
9.Display Matching: LED Display/LCD Display

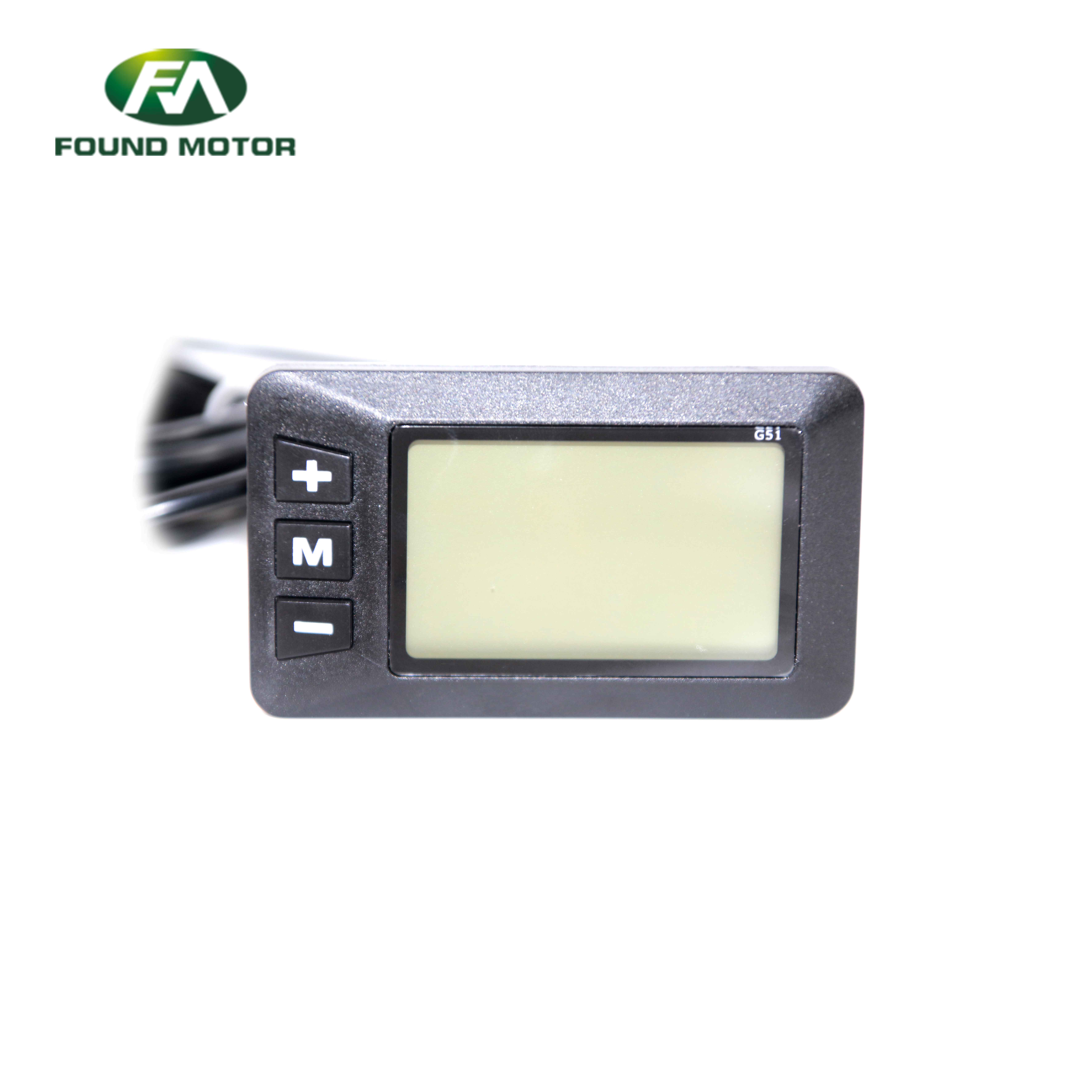

Display specifications



1.Model:G51

2.Size:48.1mmx82.1mmx12.5mm

3.Functions:PAS Level Speed;Trip/ODO/Headlight;Walk;Mile/KM/Error Alarm

4.Communication:UART

5.Holder:22.2mm

6.Voltage:24V/36V/48V

7.Certificate:CE/ROHS/IP65

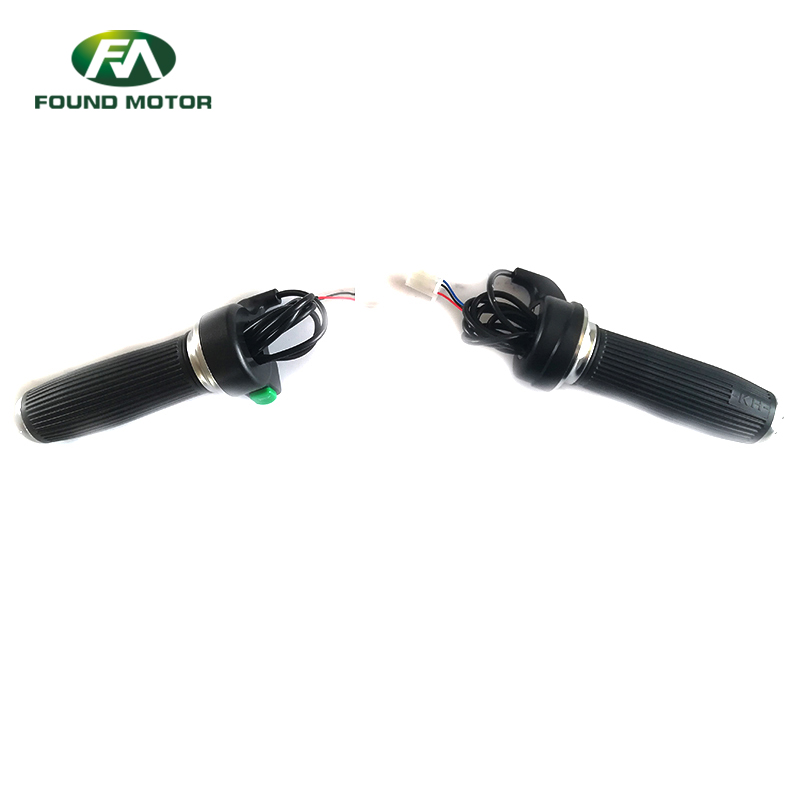

Throttle specifications

1.Throttle with normal connector.
2.Twist throttle,half twist throttle optional.
3.Cable length: 1500mm
4.Different kinds grips can be provided.

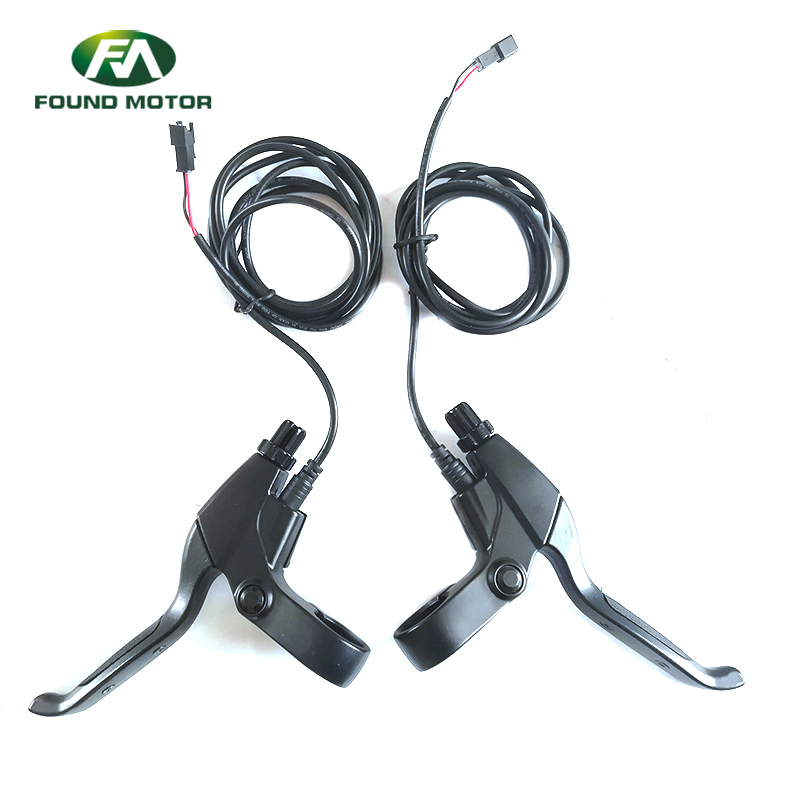

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm

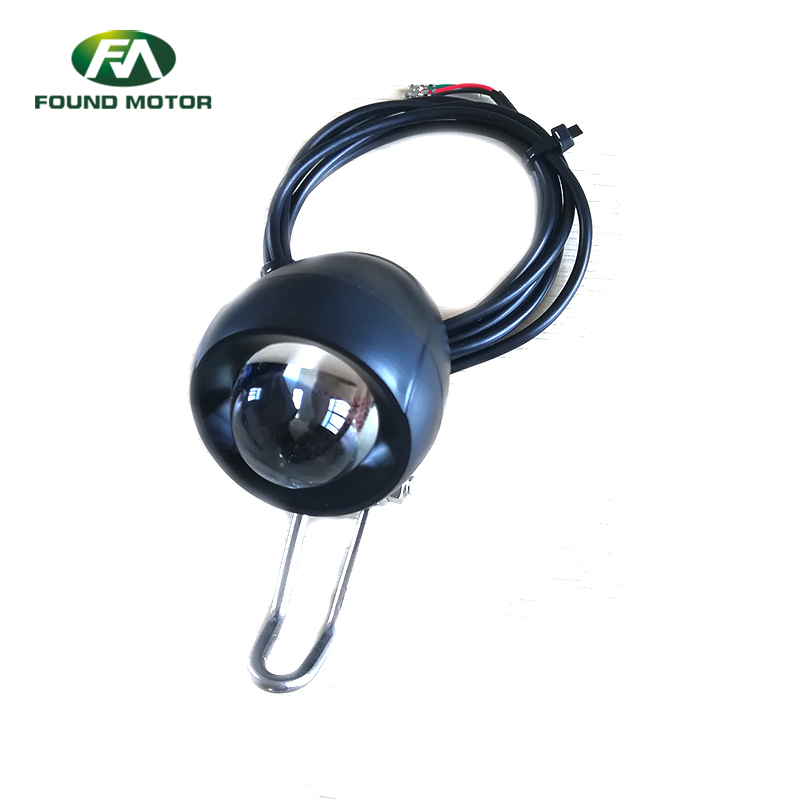

Front light specifications



1.Front light with normal connector
2.Front light optional

3.Cable length: 1500mm

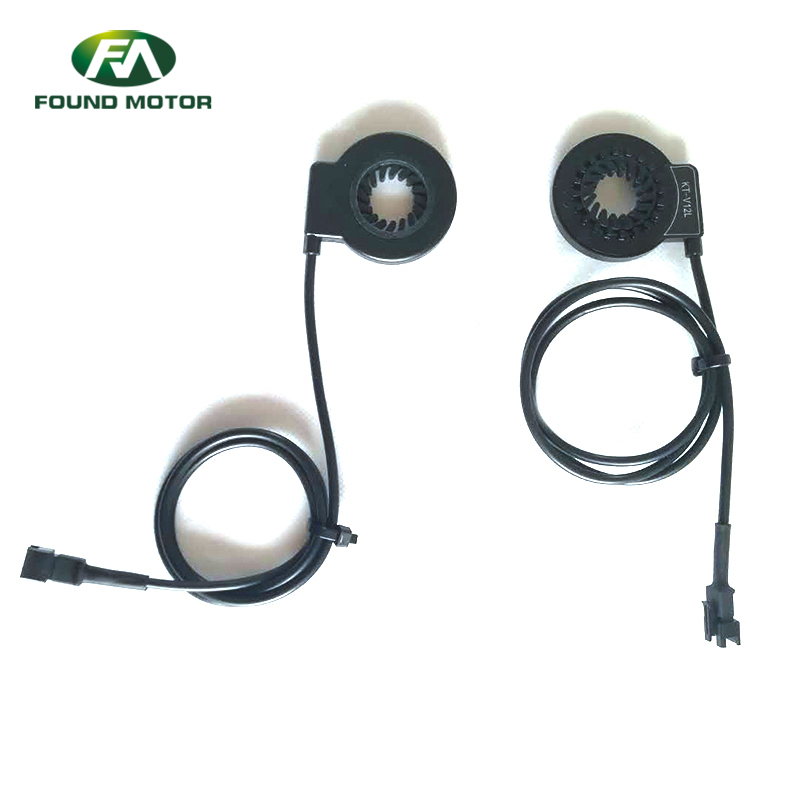

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
