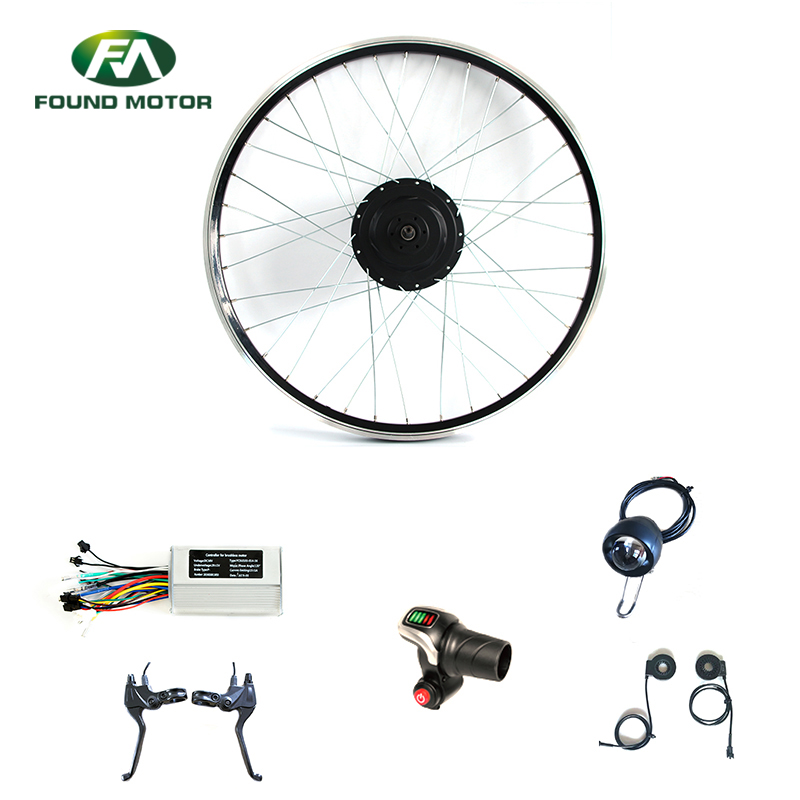

Electric Bicycle BLDC Geared Motor 48V 500W Electric Bike Conversion Kits with 25km/h Limited Speed

Electric Bicycle BLDC Geared Motor 48V 500W Electric Bike Conversion Kits with 25km/h

Limited Speed

Motor specifications

Rear drive motor
1.Wheel size:16”/18”/20”/22”/24”/26”/700C is available
2.Voltage:48V
3.Watt:500W
4.Speed:10-40Km/h
5.Freewheel:6-9speed freewheel/cassette
6.Dropout(open size): 135mm
7.Motor wire :right side,Cable length is customized(200mm-1300mm)
8.Disk motor cover , left side.
9.Color:black,silver optional.

Front drive motor

1.Wheel size:16”/18”/20”/22”/24”/26”/700C is available

2.Voltage:48V

3.Watt:500W

4.Speed:10-40Km/h

5.Dropout(open size): 100mm

6.Motor wire :right side,200mm waterproof connector/normal cable is optional

7.Disk motor cover , left side.

8.Color:black,silver optional.

Controller specifications

1.Size: 140mm x 65mm x 35mm/88mm x 50mm x 30mm
2.Rated Voltage: DC48V
3.Rated Power:350W
4.Low Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA
6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor
9.Display Matching: LED Display/ LCD Display

Throttle specifications

1.Throttle with battery indicate,normal connector.
2.Twist throttle,half twist throttle optional.
3.Different kinds grips can be provided.

4.Cable length: 1200mm

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm

Front light specifications

1.Model:SD-01

2.Front light with normal connector

3.Front light optional

4.Cable length: 1200mm

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
