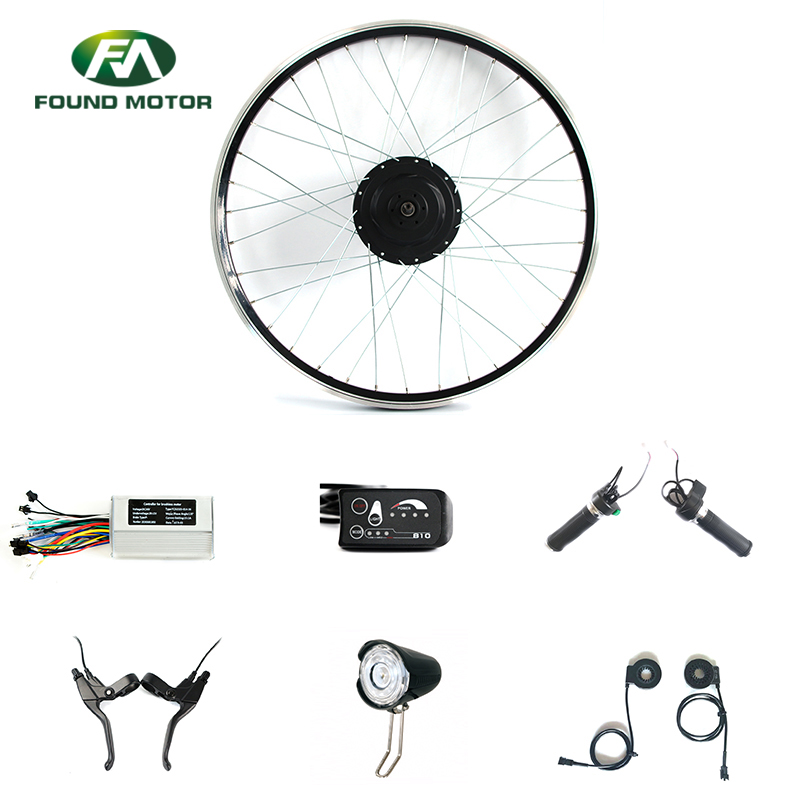

26'' 48V 500W Electric Bike Conversion Kits E-Bike BLDC Motor Kit with Optional LED/LCD Display

26'' 48V 500W Electric Bike Conversion Kits E-Bike BLDC Motor Kit with Optional LED/LCD Display

Motor specifications

Front drive motor

1.Wheel size:26” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V/52V/60V

3.Watt:250W/350W/500W

4.Speed:10-40Km/h

5.Dropout(open size): 100mm

6.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

7..Disk motor cover , left side.

8.Color:black,silver optional.

Controller specifications

1.Size: 140mm x 65mm x 35mm/88mm x 50mm x 30mm
2.Rated Voltage: DC36V/DC48V/DC64V
3.Rated Power: 180W-500W
4.Low Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA

6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor
9.Display Matching: LED Display/ LCD Display

Display specifications

1.MODEL:S810

2.Dimentin:80.5mm*42mm*42.6mm

3.Fuction:PAS Level(0-3);Headlight;Walk;Cruise;Corrected Parameter

4.Protocol:UART/SPI/I2C

5.Installation:ø22.2/ø25.4/ø31.8

6.Supply voltage:24V/36V/48V/60V/72V

7.Certification:GB/T19001-2008/CE/ROHS/IP65

Throttle specifications

1.Throttle with normal connector.
2.Twist throttle,half twist throttle optional.
3.Different kinds grips can be provided.

4.Cable length: 1500mm

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1200mm

Front light specifications

1.Model:D-018

2.Approvals: RoHs

3.Size: L: 74mm W: 52mm H: 55mm

4.Lumen: 110lm-130lm

5.Waterproof: IP54

6.Materials: ABS

7.Wiring: 3 cores

8.Power: Working Voltage: 48V

9.Output Current: 350mA

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
