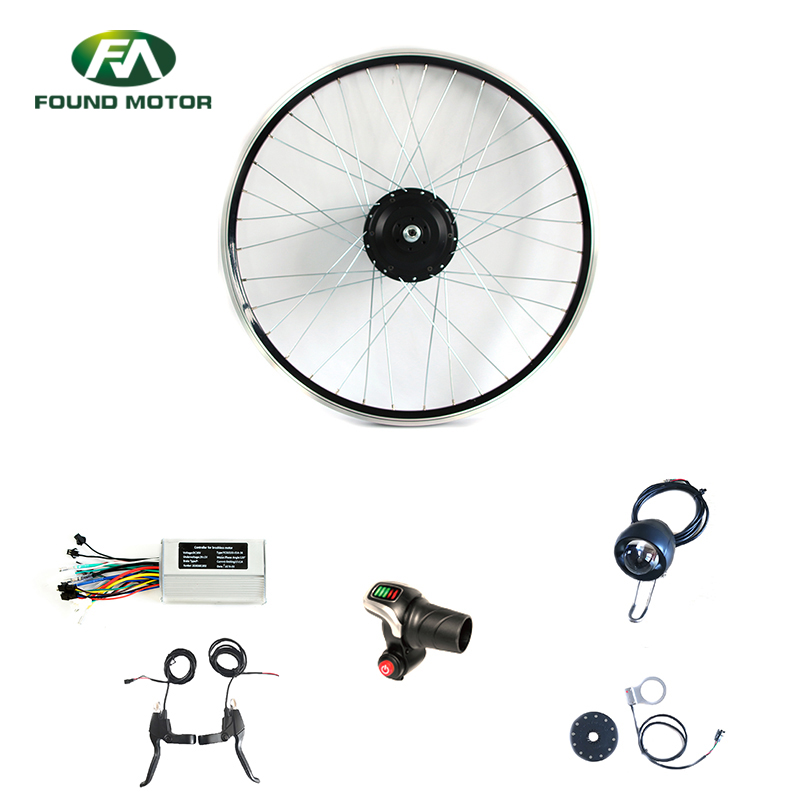

48V 350W BLDC Geared Motor Electric Bike Conversion Kit with Optional Battery Indicate Throttle

48V 350W BLDC Geared Motor Electric Bike Conversion Kit with Optional Battery Indicate

Throttle

Motor specifications

Rear drive motor

1.Wheel size:26” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V

3.Watt:180W/250W/350W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.

Controller specifications

1.Size 140mm x 65mm x 35mm/88mm x 50mm x 30mm
2.Rated Voltage DC24V/DC36V/DC48V/DC64

3.Rated Power 180W-500W
4.Law Voltage protection 12A-22A
5.Standby Power Consumption <50mA
6.Housing Materials Aluminum
7.Water Proof IPX6
8.Motor Matching Sensored Motor /Sensarless Motor

9.Display Matching LED Display/LCD Display

Throttle specifications

1.Throttle with battery indicate,normal connector.
2.Twist throttle,half twist throttle optional.
3.Different kinds grips can be provided.

4.Cable length: 1500mm

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm

Front light specifications

1.Model:SD-01
2.Front light with normal connectors

3.Front light optional

4.Cable length: 1500mm

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
