Electric Bike Conversion Kit

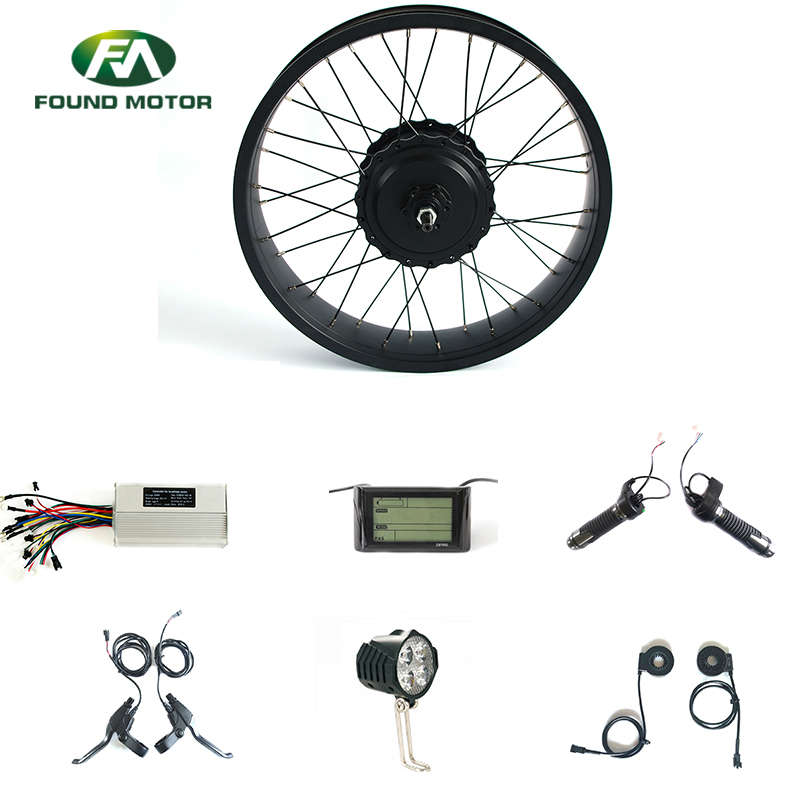

  • Electric bike conversion kit with 36V 350W BLDC geared motor for e-bike and electric bicycle
Electric bike conversion kit with 36V 350W BLDC geared motor for e-bike and electric bicycle

Electric bike conversion kit with 36V 350W BLDC geared motor for e-bike and electric bicycle

  • FOUND MOTOR
  • Electric bike conversion kit
  • Voltage: 24V/36V/48V
  • Watt: 350W-1000W
  • Description: Electric bike conversion kit with 36V 350W BLDC geared motor for e-bike and electric bicycle
  • Inquiry



Electric bike conversion kit with 36V 350W BLDC geared motor for e-bike and electric bicycle


Motor specifications


Rear drive motor

1.Wheel size:22”  (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:36V/48V/52V/60V

3.Watt:350W/500W/750W/1000W

4.Speed:10-60Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 170mm/180mm/190mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.






Controller specifications




Size                      140mm x 65mm x 35mm/88mm x 50mm x 30mm
Rated Voltage                      DC36V/DC48V/DC64V
Rated Power                           180W-500W
Low Voltage protection                    12A-22A
Standby Power Consumption               <50mA
Housing Materials                        Aluminum
Water Proof                               IPX6
Motor Matching                       Sensored Motor
Display Matching                  LED Display/ LCD Display
Size                            190mm x 82mm x 40mm
Rated Voltage                   DC36V/DC48V/DC64V/DC72V
Rated Power                         350W- 1200W
Low Voltage protection                  25A-35A
Standby Power Consumption              <50mA
Housing Materials                      Aluminum
Water Proof                              IPX6
Motor Matching                       Sensored Motor
Display Matching                  LED Display/LCD Display


Display specifications




MODEL:S900-USB

LCD/LED dispay for e-bike and electric bicycle

Dimentin:107mm*62mm*28mm

Fuction:Speed;PAS Level(0-9);TRIP/ODO;Headlight;Walk;Cruise;Mile/Km;Erro Alarm;Parameters setting;USB;Battery Level

Protocol:UART/SPI/I2C

Installation:ø22.2/ø25.4/ø31.8

Supply voltage:24V/36V/48V/60V/72V

Certification:GB/T19001-2008/CE/ROHS/IP65














Throttle specifications

Model:FD-004
Cable length: 1500mm    optional






Brake lever specifications


1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm







Front light specifications

Model:D-021

1.Front light with normal connector.
2.Front light optional.

3.Cable length: 1500mm






PAS specifications


1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
