Electric bike conversion kit DSDX-1+1833 throttle with battery indicate for electric bike and electric bicycle

Electric bike conversion kit  DSDX-1+1833 throttle  with battery indicate for electric bike and electric bicycle

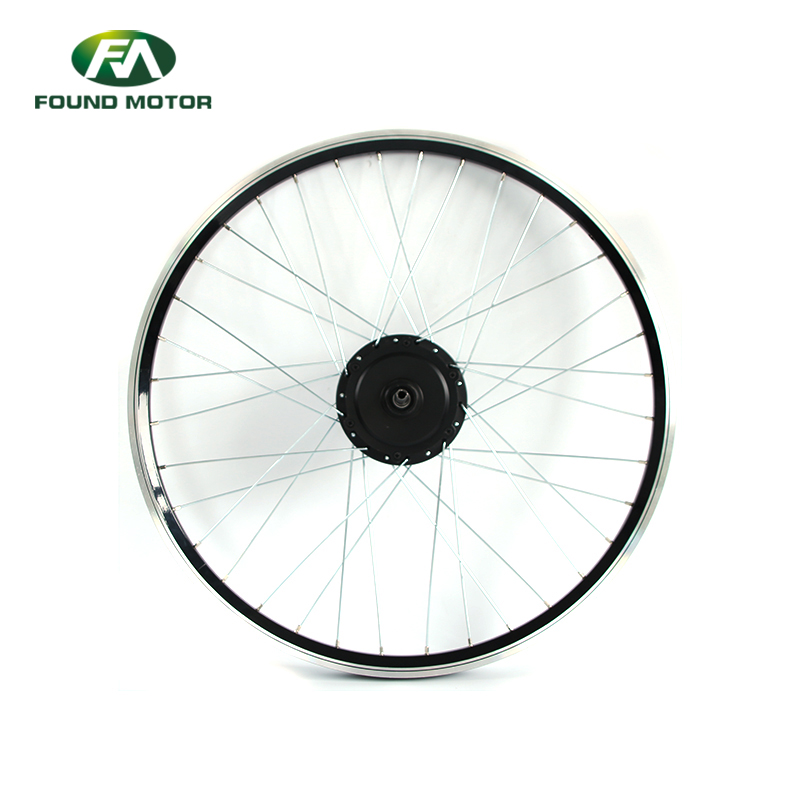

Motor specifications

Rear drive motor

1.Wheel size:26”  (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V

3.Watt:180W/250W/350W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.

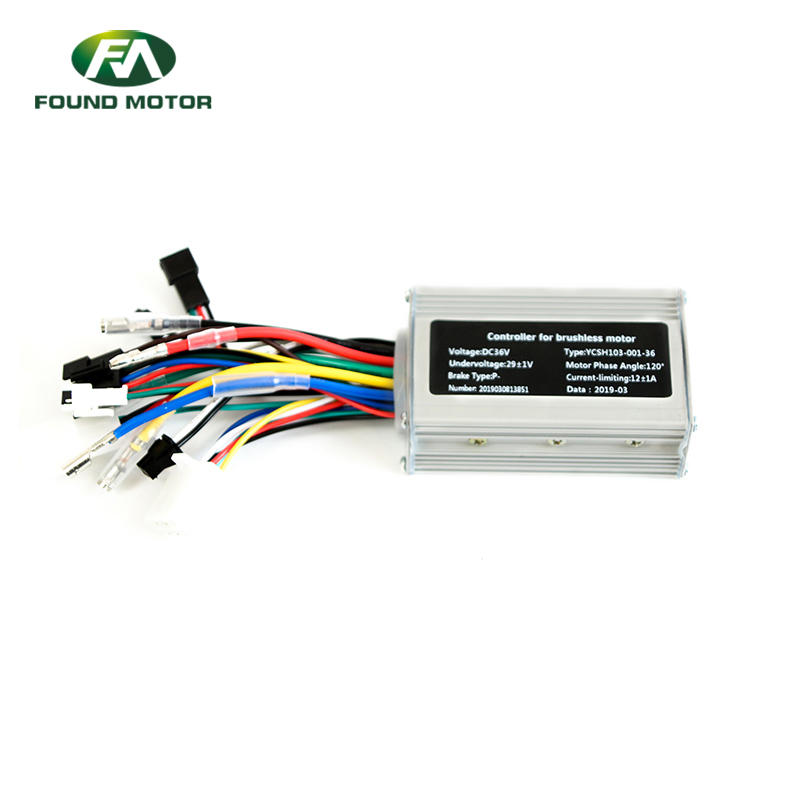

Controller specifications

1.Size: 140mm x 65mm x 35mm/88mm x 50mm x 30mm
2.Rated Voltage: DC36V/DC48V/DC64V
3.Rated Power: 180W-500W
4.Low Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA

6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor
9.Display Matching: LED Display/ LCD Display

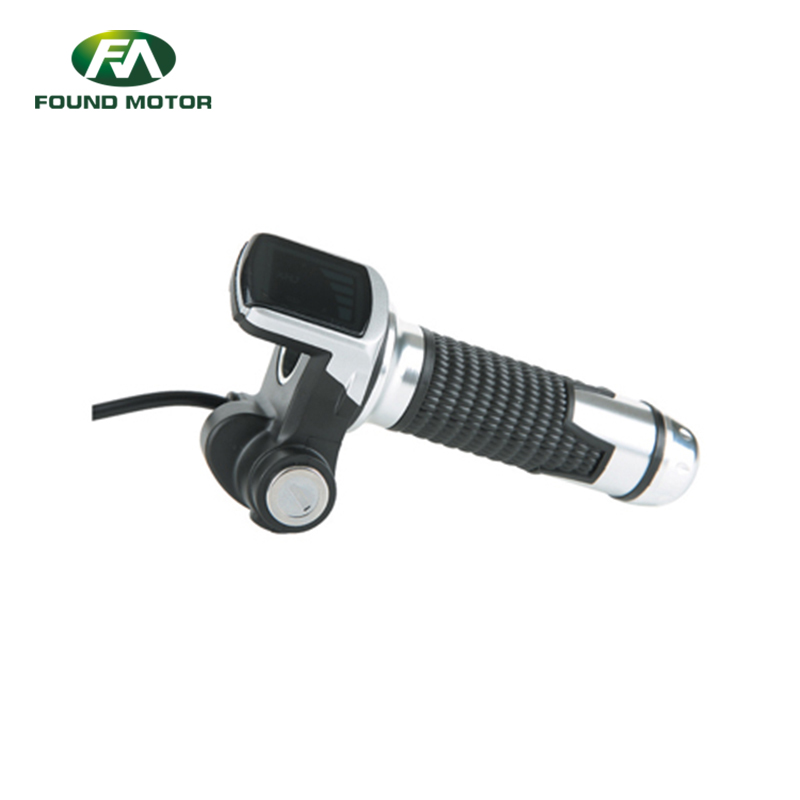

Throttle specifications

Mode number:DSDX-1+1833

Cable length:1500mm

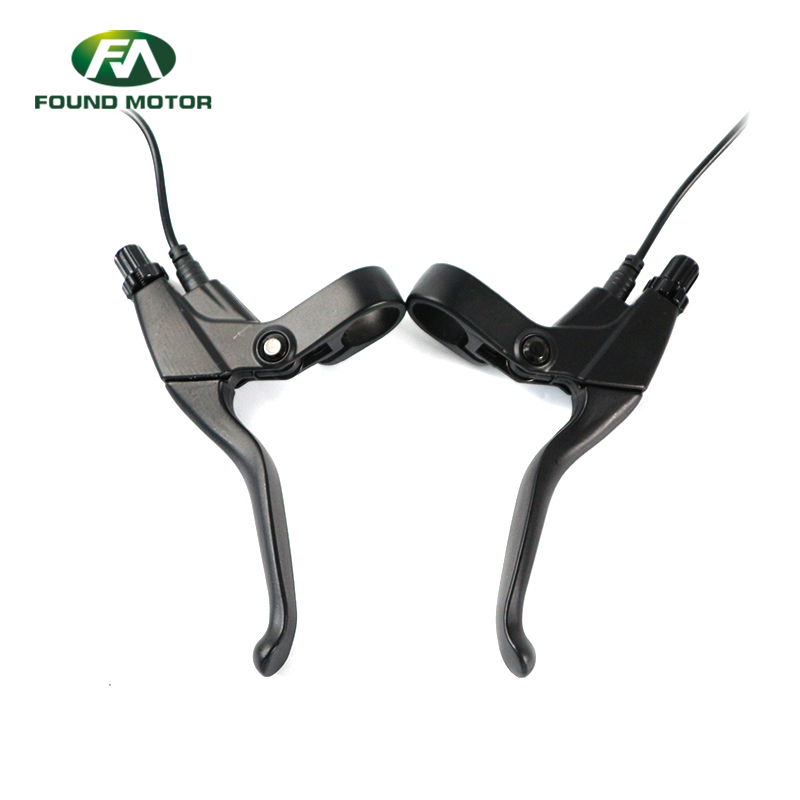

Brake lever specifications

Model:KB-039

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1250mm

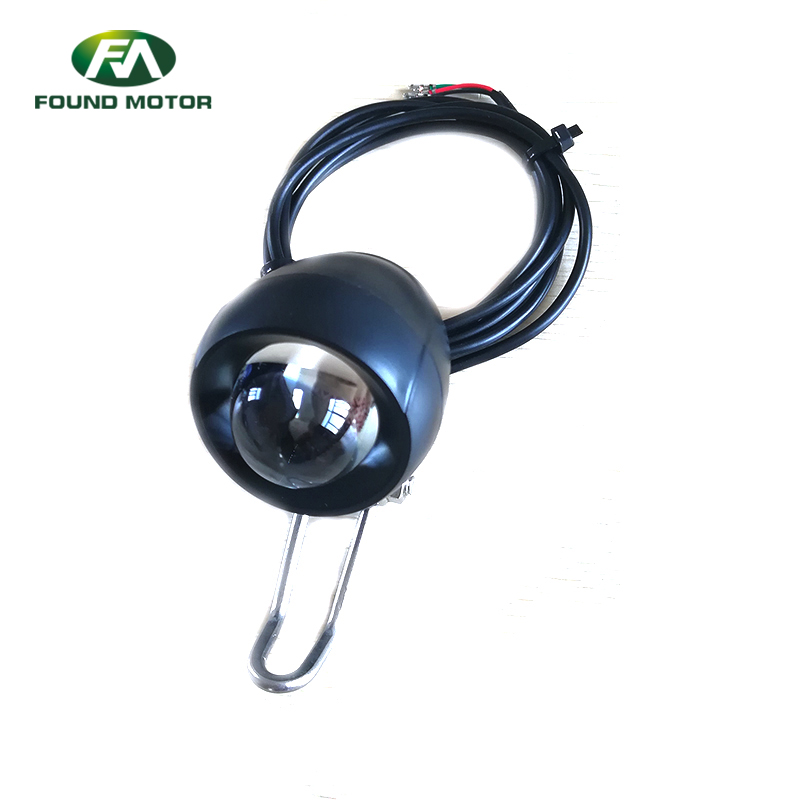

Front light specifications

Mode number:SD-01

Cable length:125mm     optional

PAS specifications

Model:KT-V12L

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
