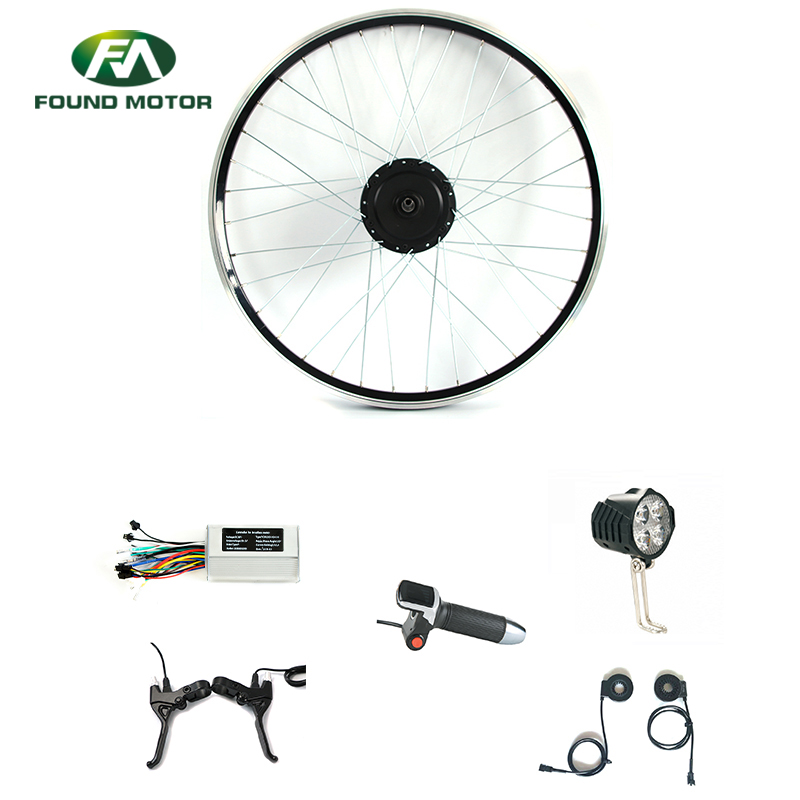

26'' 48V 350W Electric Bike Conversion Kit with Battery Indicate Throttle

26'' 48V 350W Electric Bike Conversion Kit with Battery Indicate Throttle

Motor specifications

Rear drive motor

1.Wheel size:26” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V

3.Watt:180W/250W/350W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.

Controller specifications

1.Size: 140mm x 65mm x 35mm/88mm x 50mm x 30mm
2.Rated Voltage: DC36V/DC48V/DC64V
3.Rated Power: 180W-500W
4.Low Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA

6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor
9.Display Matching: LED Display/ LCD Display

Throttle specifications

1.Throttle with battery indicate, normal connector.
2.Twist throttle,half twist throttle optional.
3.Power lock with key,power buttun optional.
4.Different kinds grips can be provided.

5.Cable length: 1500mm

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1200mm

Front light specifications

1.Model: D-021

2.Approvals: RoHs

3.Size: L: 50mm W: 62mm H: 73mm

4.Lumen: 280lm-300lm

5.Waterproof: IP54

6.Materials: ABS

7.Wiring: 3 cores

8.Power: Working Voltage: 48V

9.Output Current: 3V-9V

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
