Electric Bike Conversion Kit

  • 48V 750W BLDC Geared Motor Electric Bike Conversion Kit with Optional Front Light
48V 750W BLDC Geared Motor Electric Bike Conversion Kit with Optional Front Light

48V 750W BLDC Geared Motor Electric Bike Conversion Kit with Optional Front Light

  • FOUND MOTOR
  • Electric bike conversion kit
  • Voltage: 24V/36V/48V
  • Watt: 180W-500W
  • Description: 48V 750W BLDC Geared Motor Electric Bike Conversion Kit with Optional Front Light
  • Inquiry

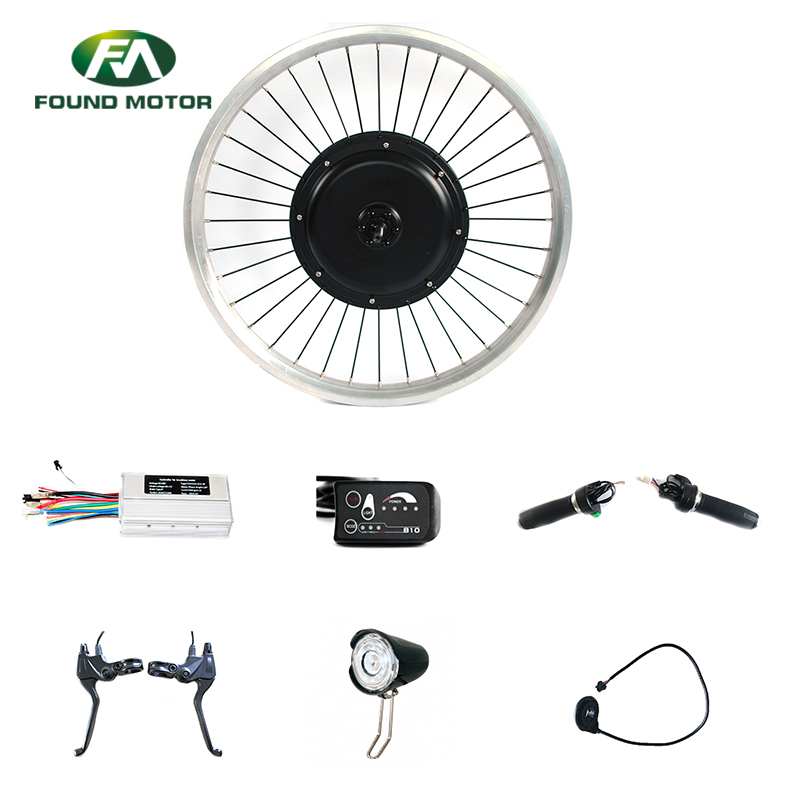

48V 750W BLDC Geared Motor Electric Bike Conversion Kit with Optional Front Light


Motor specifications


Rear drive motor

1.Wheel size:24” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V/52V/60V

3.Watt:250W/350W/500W/750W/1000W

4.Speed:10-60Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :left side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.


Front drive motor

1.Wheel size:24” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V/52V/60V

3.Watt:250W/350W/500W/750W/1000W

4.Speed:10-60Km/h

5.Dropout(open size): 100mm

6.Motor wire :left side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

7..Disk motor cover , left side.

8.Color:black,silver optional.






Controller specifications


1.Size: 88mm x 50mm x 30mm
2.Rated Voltage: DC48V
3.Rated Power: 500W
4.Law Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA
6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor /Sensarless Motor
9.Display Matching: LED Display/LCD Display






Display specifications


1.Model:S810

2.Dimentin:80.5mm*42mm*42.6mm

3.Fuction:PAS Level(0-3);Headlight;Walk;Cruise;Corrected Parameter

4.Protocol:UART/SPI/I2C

5.Installation:ø22.2/ø25.4/ø31.8

6.Supply voltage:24V/36V/48V/60V/72V

7.Certification:GB/T19001-2008/CE/ROHS/IP65







Throttle specifications


1.Cable length: 1000mm

2.Throttle with normal connector

3.Twist throttle,half twist throttle and thumb throttle optional.

4.Different kinds grips can be provided.






Brake lever specifications


1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm







Front light specifications


1.Model:D-018

2.Approvals: RoHs

3.Size: L: 74mm W: 52mm H: 55mm

4.Lumen: 110lm-130lm

5.Waterproof: IP54

6.Materials: ABS

7.Wiring: 3 cores

8.Power: Working Voltage: 48V

9.Output Current: 350mA






PAS specifications


1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
