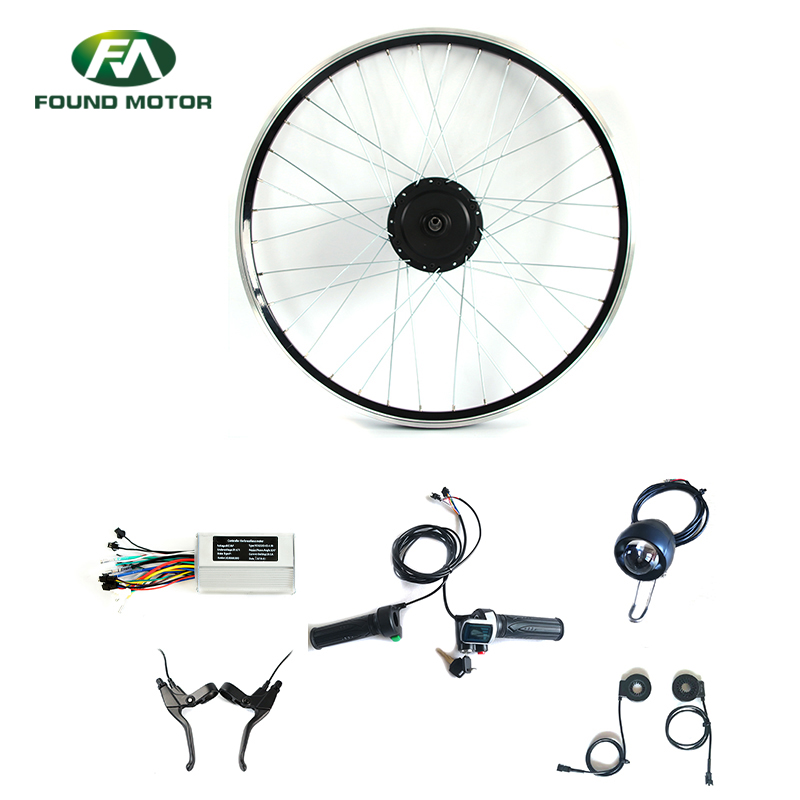

Electric Bike Conversion Kit

  • 48V 350W Electric Bike Conversion Kit with Battery Indicate Throttle Electric Bike Accessories
48V 350W Electric Bike Conversion Kit with Battery Indicate Throttle Electric Bike Accessories

48V 350W Electric Bike Conversion Kit with Battery Indicate Throttle Electric Bike Accessories

  • FOUND MOTOR
  • Electric bike conversion kit
  • Voltage: 24V/36V/48V
  • Watt: 180W-500W
  • Description: 48V 350W Electric Bike Conversion Kit with Battery Indicate Throttle Electric Bike Accessories
  • Inquiry



48V 350W Electric Bike Conversion Kit with Battery Indicate Throttle Electric Bike Accessories


Motor specifications


Rear drive motor

1.Wheel size:26” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V

3.Watt:180W/250W/350W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.





Controller specifications


1.Size: 88mm x 50mm x 30mm
2.Rated Voltage: DC48V
3.Rated Power: 500W
4.Law Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA
6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor /Sensarless Motor
9.Display Matching: LED Display/LCD Display






Throttle specifications


1.Throttle with battery indicate,normal connector.
2.Twist throttle,half twist throttle optional.
3.Different kinds grips can be provided.

4.Cable length: 1200mm






Brake lever specifications


1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm







Front light specifications


1.Front light with normal conncetor

2.Front light optional

3.Cable length: 1500mm






PAS specifications


1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
