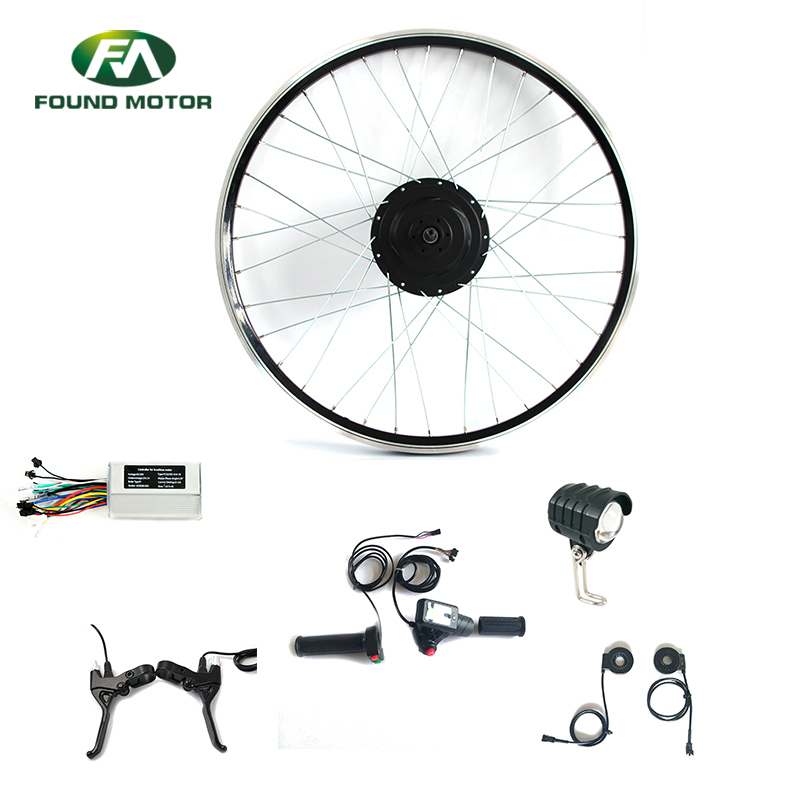

E Bicycle Conversion Kit 48V 500W BLDC Geared Motor Electric Bike Kit with Optional Power Display Throttle

E Bicycle Conversion Kit 48V 500W BLDC Geared Motor Electric Bike Kit with Optional

Power Display Throttle

Motor specifications

Rear drive motor

1.Wheel size:26''

2.Voltage:48V

3.Watt:500W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,1300mm waterproof connector/normal cable is optional

8..Disk motor cover , left side.

9.Color:black,silver optional.

Controller specifications

1.Size: 140mm x 65mm x 35mm/88mm x 50mm x 30mm
2.Rated Voltage: DC48V
3.Rated Power:350W
4.Low Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA
6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor
9.Display Matching: LED Display/ LCD Display

Throttle specifications

1.Throttle with power display,normal connector.
2.Twist throttle,half twist throttle optional.
3.Different kinds grips can be provided.

4.Cable length: 1000mm

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm

Front light specifications

1.Model:D-022
2.Approvals: GB17761
3.Size: L: 54mm W: 58mm H: 103mm
4.Lumen: 130lm-150lm
5.Waterproof: IP54
6.Materials: ABS
7.Wiring: 3 cores
8.Power: Working Voltage: 48V
9.Output Current: 40mA-60mA

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
