24'' 48V 500W Power Display Throttle kit Electric Bike Conversion Kit with Optional Brake Lever

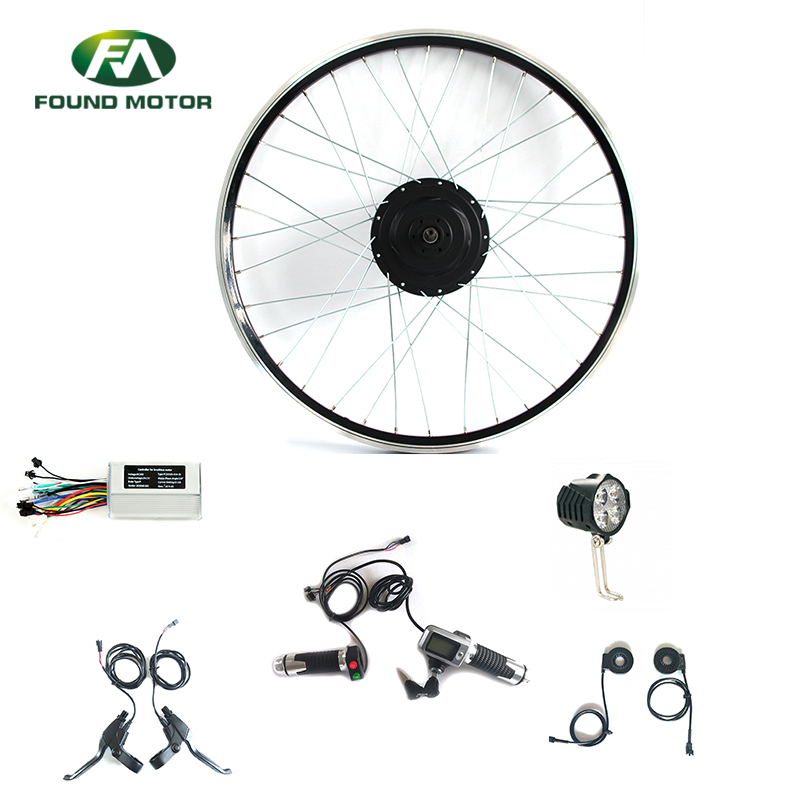

26'' 48V 500W Power Display Throttle kit Electric Bike Conversion Kit with BLDC Geared Motor

Motor specifications

Rear drive motor

1.Wheel size:26''

2.Voltage:48V

3.Watt:500W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,1300mm waterproof connector/normal cable is optional

8..Disk motor cover , left side.

9.Color:black,silver optional.

Controller specifications

1.Size: 140mm x 65mm x 35mm/88mm x 50mm x 30mm
2.Rated Voltage: DC48V
3.Rated Power:350W
4.Low Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA
6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor
9.Display Matching: LED Display/ LCD Display

Throttle specifications

1.Throttle with power display,normal connector.
2.Twist throttle,half twist throttle optional.
3.Different kinds grips can be provided.

4.Cable length: 1000mm

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm

Front light specifications

1.Model:D-021

2.Approvals: RoHs

3.Size: L: 50mm W: 62mm H: 73mm

4.Lumen: 280lm-300lm

5.Waterproof: IP54

6.Materials: ABS

7.Wiring: 3 cores

8.Power: Working Voltage: 48V

9.Output Current: 3V-9V

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
