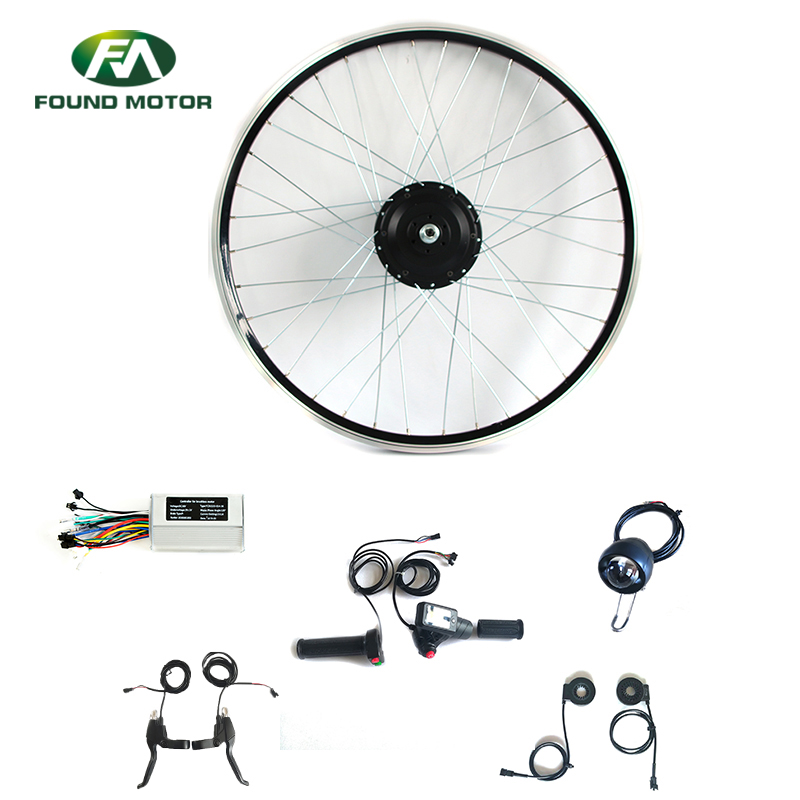

FOUND MOTOR Electric Hub Motor Electric Bike Conversion Kit with Power Display Throttle

FOUND MOTOR Electric Hub Motor Electric Bike Conversion Kit with Power Display Throttle

Motor specifications

Front drive motor

1.Wheel size:26” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V

3.Watt:180W/250W/350W

4.Speed:10-40Km/h

5.Dropout(open size): 100mm

6.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

7..Disk motor cover , left side.

8.Color:black,silver optional.

Controller specifications

1.Size: 88mm x 50mm x 30mm
2.Rated Voltage: DC48V
3.Rated Power: 500W
4.Law Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA
6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor /Sensarless Motor
9.Display Matching: LED Display/LCD Display

Throttle specifications

1.Throttle with power display,normal connector.
2.Twist throttle,half twist throttle optional.
3.Different kinds grips can be provided.

4.Cable length: 1500mm

5.Power lock with key,power buttun optional.

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm

Front light specifications

1.Model:DS-01

2.Front light with normal connectors

3.Front light optional

4.Cable length: 1200mm

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
