Electric Bike Conversion Kit

  • Electric Bike Conversion Kit DSDX-1+1511 Throttle With KB-42 brake lever For Electric Bike And Electric Bicycle
  • Electric Bike Conversion Kit DSDX-1+1511 Throttle With KB-42 brake lever For Electric Bike And Electric Bicycle
  • Electric Bike Conversion Kit DSDX-1+1511 Throttle With KB-42 brake lever For Electric Bike And Electric Bicycle
  • Electric Bike Conversion Kit DSDX-1+1511 Throttle With KB-42 brake lever For Electric Bike And Electric Bicycle
  • Electric Bike Conversion Kit DSDX-1+1511 Throttle With KB-42 brake lever For Electric Bike And Electric Bicycle
  • Electric Bike Conversion Kit DSDX-1+1511 Throttle With KB-42 brake lever For Electric Bike And Electric Bicycle
Electric Bike Conversion Kit DSDX-1+1511 Throttle With KB-42 brake lever For Electric Bike And Electric BicycleElectric Bike Conversion Kit DSDX-1+1511 Throttle With KB-42 brake lever For Electric Bike And Electric BicycleElectric Bike Conversion Kit DSDX-1+1511 Throttle With KB-42 brake lever For Electric Bike And Electric BicycleElectric Bike Conversion Kit DSDX-1+1511 Throttle With KB-42 brake lever For Electric Bike And Electric BicycleElectric Bike Conversion Kit DSDX-1+1511 Throttle With KB-42 brake lever For Electric Bike And Electric BicycleElectric Bike Conversion Kit DSDX-1+1511 Throttle With KB-42 brake lever For Electric Bike And Electric Bicycle

Electric Bike Conversion Kit DSDX-1+1511 Throttle With KB-42 brake lever For Electric Bike And Electric Bicycle

  • FOUND MOTOR
  • Electric bike conversion kit
  • Voltage: 24V/36V/48V
  • Watt: 180W-350W
  • Description: Electric Bike Conversion Kit DSDX-1+1511 Throttle With KB-42 brake lever For Electric Bike And Electric Bicycle
  • Inquiry



Electric Bike Conversion Kit DSDX-1+1511 Throttle With KB-42 brake lever For Electric Bike And Electric Bicycle

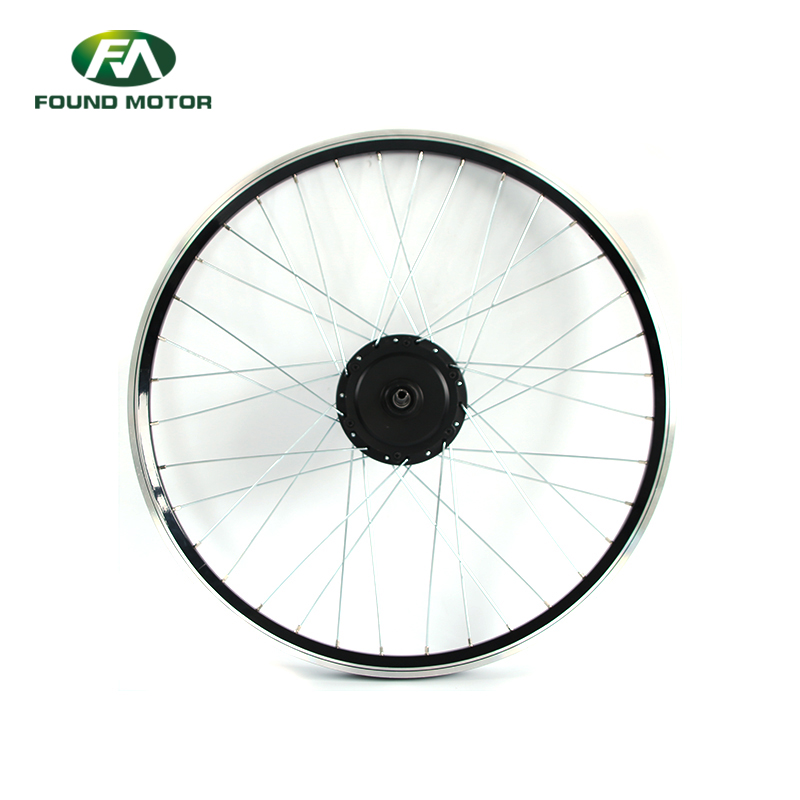

Motor specifications

Rear drive motor

1.Wheel size:26”  (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V

3.Watt:180W/250W/350W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.

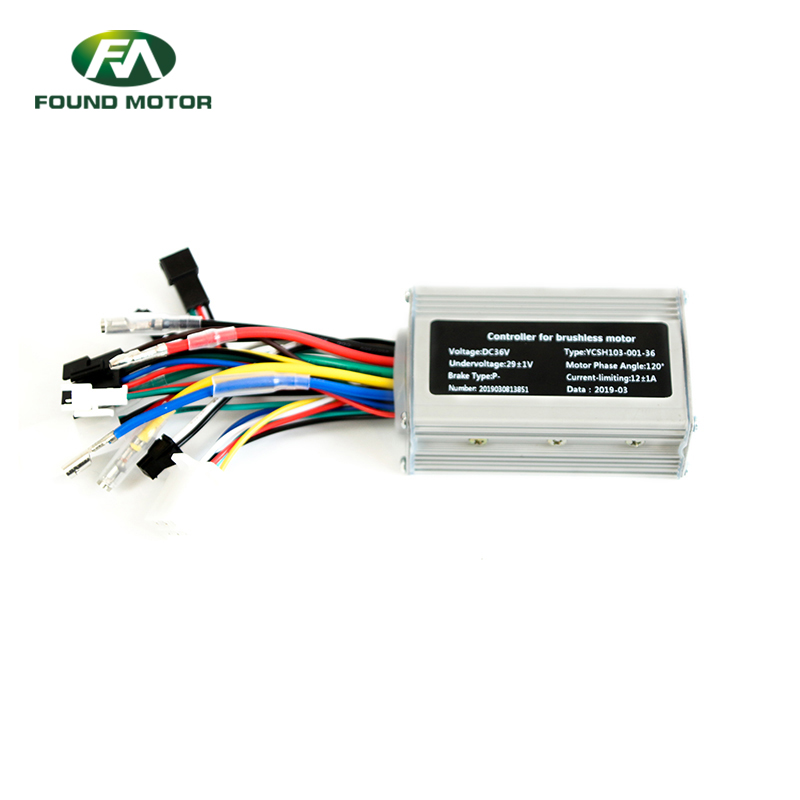

Controller specifications

SW-9
Size                      140mm x 65mm x 35mm/88mm x 50mm x 30mm
Rated Voltage                       DC36V/DC48V/DC64V
Rated Power                            180W- 500W
Low Voltage protection                     12A-22A
Standby Power Consumption                <50mA
Housing Materials                        Aluminum
Water Proof                                IPX6
Motor Matching                        Sensored Motor
Display Matching                  LED Display/ LCD Display

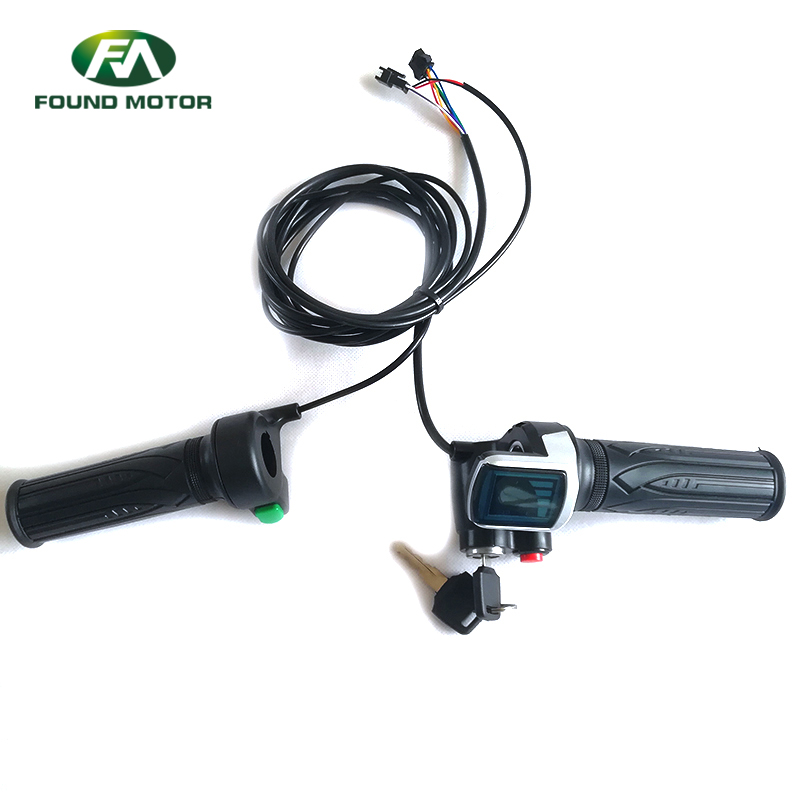

Throttle specifications

Mode number:DSDX-1+1511

Cable length:1100mm

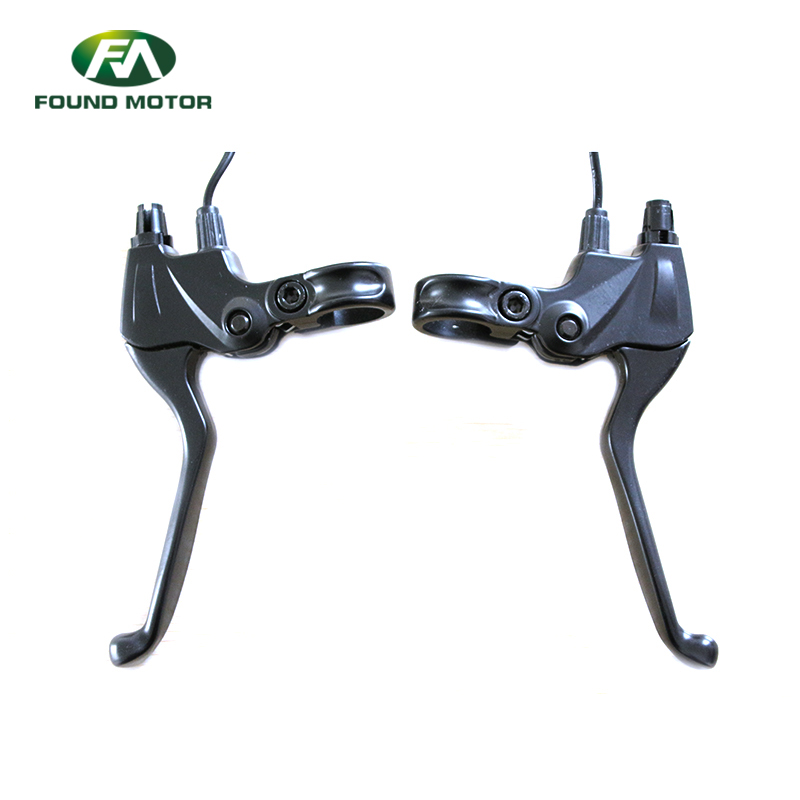

Brake lever specifications

Model:KB-042

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1250mm

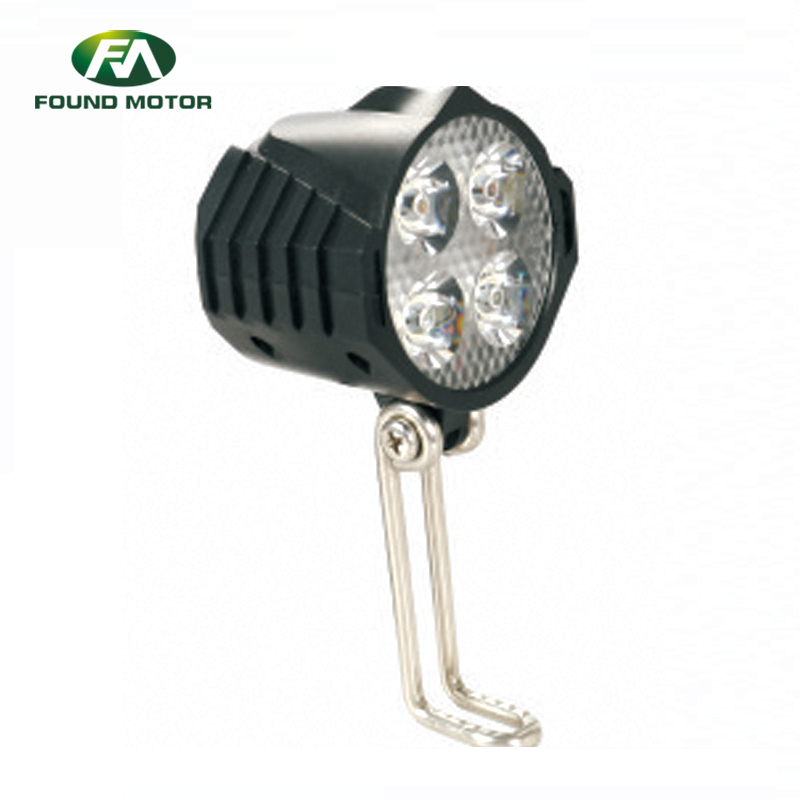

Front light specifications

Mode number:D-021

Cable length:140mm     optional

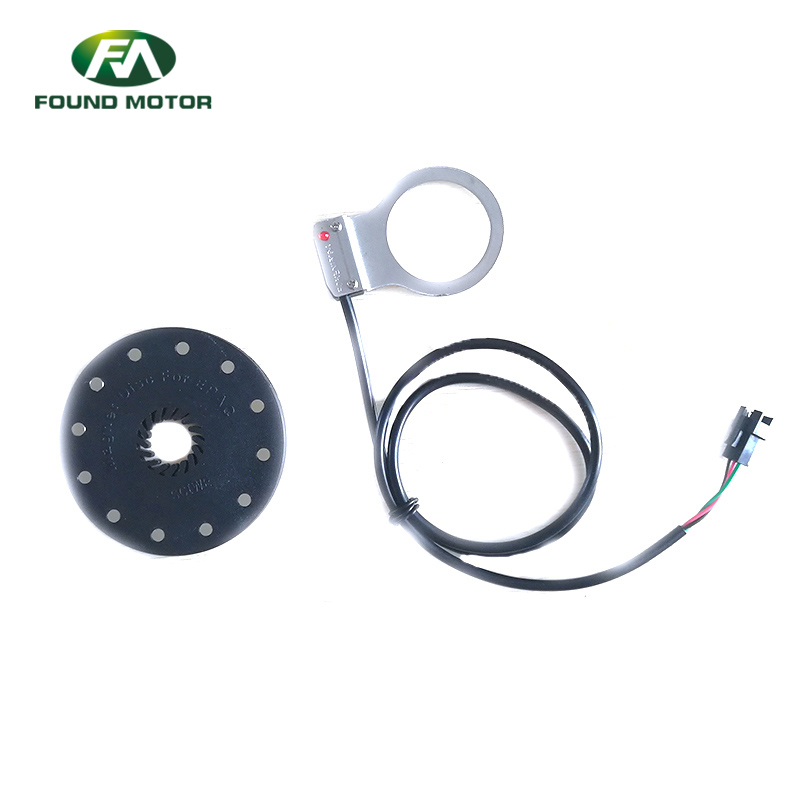

PAS specifications

Model:GP-002

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
