Electric Bike Conversion Kit

  • 48V 350W Electric Bike Conversion Kit with LCD/LED Display for Electric Bicycle

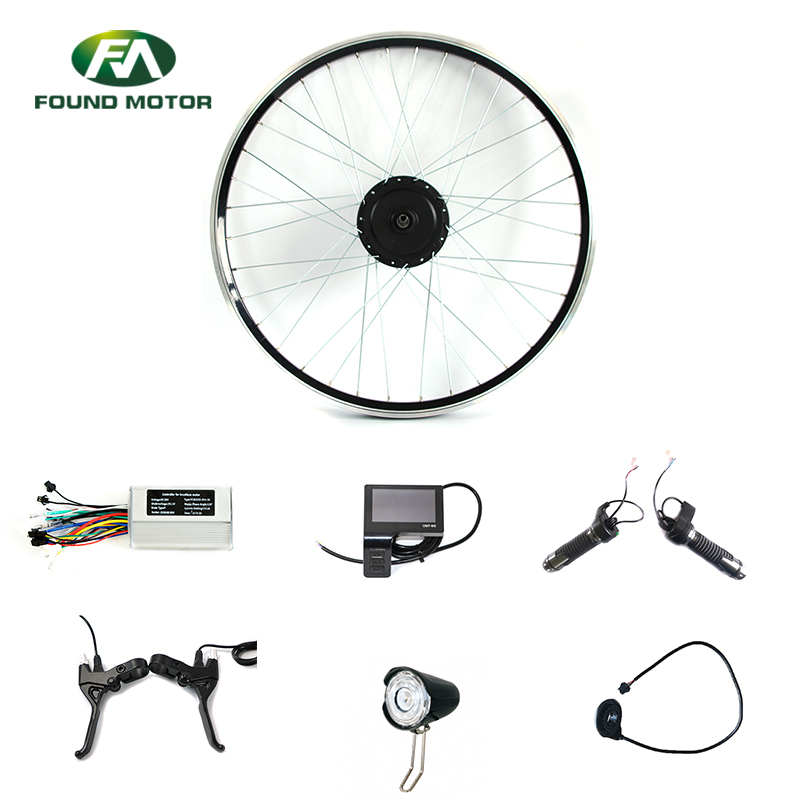

48V 350W Electric Bike Conversion Kit with LCD/LED Display for Electric Bicycle

48V 350W Electric Bike Conversion Kit with LCD/LED Display for Electric Bicycle

  • FOUND MOTOR
  • Electric bike conversion kit
  • Voltage: 24V/36V/48V
  • Watt: 180W-500W
  • Description: 48V 350W Electric Bike Conversion Kit with LCD/LED Display for Electric Bicycle
  • Inquiry



48V 350W Electric Bike Conversion Kit with LCD/LED Display for Electric Bicycle


Motor specifications


Rear drive motor

1.Wheel size:26” (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:24V/36V/48V

3.Watt:180W/250W/350W

4.Speed:10-40Km/h

5.Freewheel:6-9speed freewheel/cassette

6.Dropout(open size): 135mm

7.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

8..Disk motor cover , left side.

9.Color:black,silver optional.







Controller specifications


1.Size: 88mm x 50mm x 30mm
2.Rated Voltage: DC48V
3.Rated Power: 500W
4.Law Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA
6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor /Sensarless Motor
9.Display Matching: LED Display/LCD Display






Display specifications


1.Model:M5

2.LCD/LED display with normal connector

3.LCD/LED display optional

4.Cable length: 1000mm







Throttle specifications


1.Throttle with normal connector.
2.Twist throttle,half twist throttle optional.
3.Cable length: 1500mm
4.Different kinds grips can be provided.





Brake lever specifications


1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm







Front light specifications


1.Model:D-018

2.Approvals: RoHs

3.Size: L: 74mm W: 52mm H: 55mm

4.Lumen: 110lm-130lm

5.Waterproof: IP54

6.Materials: ABS

7.Wiring: 3 cores

8.Power: Working Voltage: 48V

9.Output Current: 350mA






PAS specifications


1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
