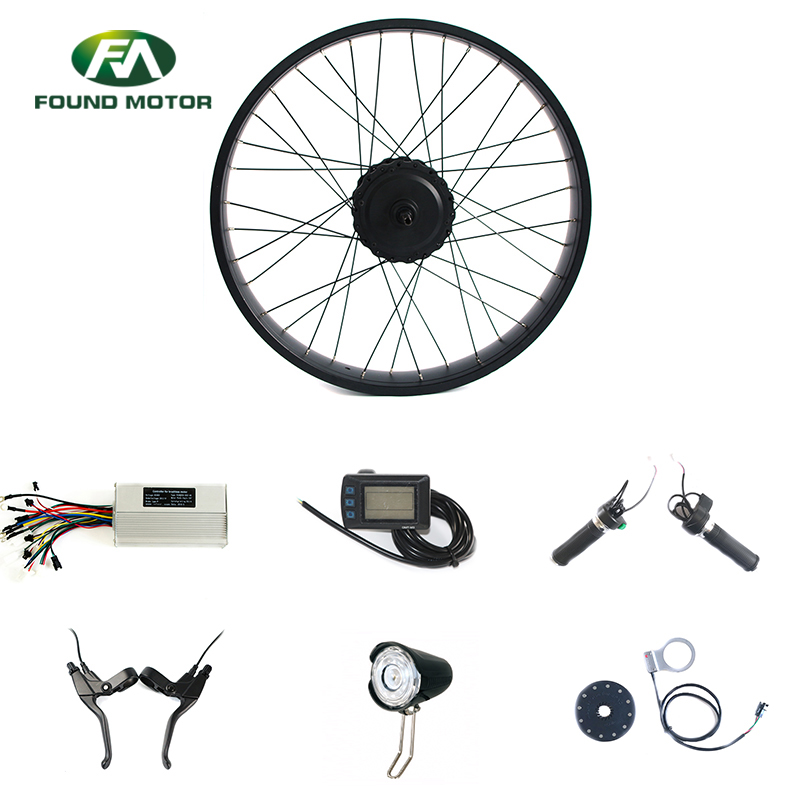

52V 750W BLDC geared Motor Electric Bike Conversion Kit with M3 display for electric bike

52V 750W BLDC geared Motor Electric Bike Conversion Kit with M3 display for electric bike

Motor specifications

Front drive motor

1.Wheel size:26”  (16”/18”/20”/22”/24”/26”/700C is available)

2.Voltage:36V/48V/52V/60V

3.Watt:350W/500W/750W/1000W

4.Speed:10-60Km/h

5.Dropout(open size): 170mm/180mm/190mm

6.Motor wire :right side,200mm waterproof connector/normal cable is optional

Cable length is customized(200mm-1300mm)

7..Disk motor cover , left side.

8.Color:black,silver optional.

Controller specifications

Size                      140mm x 65mm x 35mm/88mm x 50mm x 30mm
Rated Voltage                      DC36V/DC48V/DC64V
Rated Power                           180W-500W
Low Voltage protection                    12A-22A
Standby Power Consumption               <50mA
Housing Materials                        Aluminum
Water Proof                               IPX6
Motor Matching                       Sensored Motor
Display Matching                  LED Display/ LCD Display
Size                            190mm x 82mm x 40mm
Rated Voltage                   DC36V/DC48V/DC64V/DC72V
Rated Power                         350W- 1200W
Low Voltage protection                  25A-35A
Standby Power Consumption              <50mA
Housing Materials                      Aluminum
Water Proof                              IPX6
Motor Matching                       Sensored Motor
Display Matching                  LED Display/LCD Display

MODEL:M3

LCD/LED dispay for e-bike and electric bicycle

Dimentin:107mm*62mm*28mm

Fuction:Speed;PAS Level(0-9);TRIP/ODO;Headlight;Walk;Cruise;Mile/Km；Erro Alarm;Parameters setting;USB;Battery Level

Protocol:UART/SPI/I2C

Installation:ø22.2/ø25.4/ø31.8

Supply voltage:24V/36V/48V/60V/72V

Certification:GB/T19001-2008/CE/ROHS/IP65

Throttle specifications

Model:FD-003
Cable length: 1500mm    optional

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm

Front light specifications

Model:D-018

1.Front light with normal connector.
2.Front light optional.

3.Cable length: 1500mm

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
