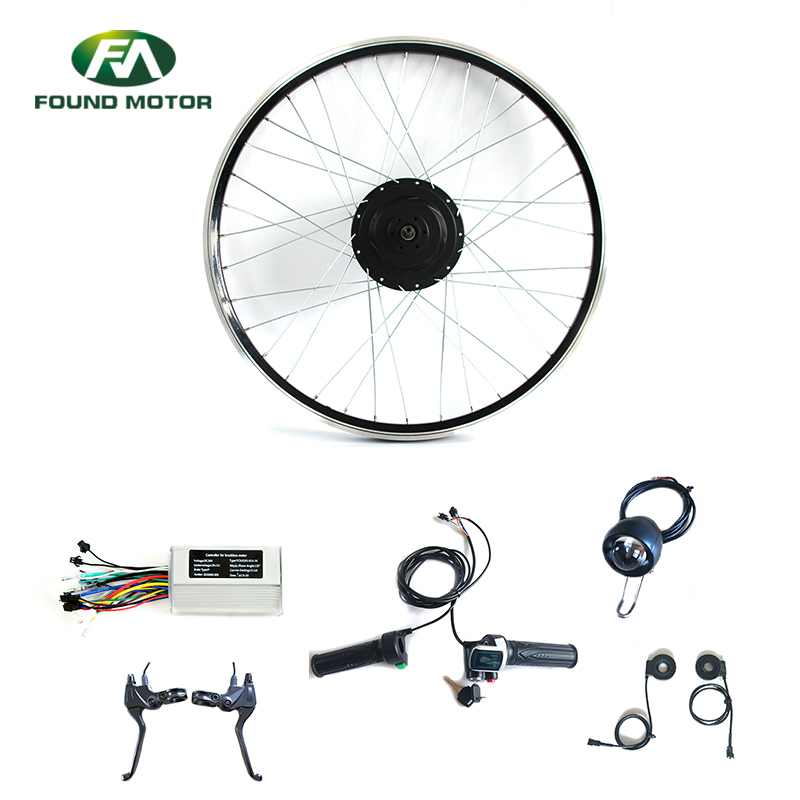

Electric Bicycle BLDC Geared Motor 48V 350W Electric Bike Conversion Kits with Optional Battery Indicate Throttle

Electric Bicycle BLDC Geared Motor 48V 350W Electric Bike Conversion Kits with Optional

Battery Indicate Throttle

Motor specifications

Rear drive motor
1.Wheel size:16”/18”/20”/22”/24”/26”/700C is available
2.Voltage:48V
3.Watt:350W
4.Speed:10-40Km/h
5.Freewheel:6-9speed freewheel/cassette
6.Dropout(open size): 135mm
7.Motor wire :right side,Cable length is customized(200mm-1300mm)
8.Disk motor cover , left side.
9.Color:black,silver optional.

Controller specifications

1.Size: 88mm x 50mm x 30mm
2.Rated Voltage:DC48V
3.Rated Power: 350W
4.Low Voltage protection: 12A-22A
5.Standby Power Consumption: <50mA

6.Housing Materials: Aluminum
7.Water Proof: IPX6
8.Motor Matching: Sensored Motor
9.Display Matching: LED Display/ LCD Display

Throttle specifications

1.Throttle with battery indicate,normal connector.
2.Twist throttle,half twist throttle optional.
3.Different kinds grips can be provided.

4.Cable length: 1500mm

Brake lever specifications

1.Brake lever with normal conncetor

2.Brake lever optional

3.Cable length: 1500mm

Front light specifications

1.Model:SD-01

2.Front light with normal connector

3.Front light optional

4.Cable length: 1500mm

PAS specifications

1.PAS with normal connector

2.PAS optional

3.Cable length: 600mm
