Electric Bike Conversion Kit

FMK-10B

FOUND MOTOR
Eectric bike conversion kit
Rear drive motor
26'' 48V 1000W brushless geared motor
Description: FMK-10B 48V 1000W WATERPROOF BUS CABLE KIT Rear drive 6-9S speed motor kit with SW900 LCD display 26 inch and rim for electric bike electric bicycle convesion kit and electric bike kit
Inquiry

FMK-10B 48V 1000W WATERPROOF BUS CABLE KIT Rear drive 6-9S speed motor kit with SW900 LCD display 26 inch and rim for electric bike

NO	Product name	Product Code	Specifications
NO	Product name	Product Code	Specifications
1	Motor	FM-01-02-205-35AR	1.26"36V/48V 1000W BLDC Gearless rear drive spoke motor 2.Dropout:135mm(open size),6-9 speed 3.Waterproof cable with connector 200mm 4.Disk brake cover left,motor cable left 5.Color:black/silver 6.Customized LOGO available 7.26*1.95-2.25 double layers rim with spokes 8.Standard carton and foams
2	Controller	YCSW103-022-48	1.DC 36V/48V, FOC controller. 2.Current-limiting 30A. 3.Waterproof connector:Motor,power,throttle,brakelever, LCD display,switch,front light,PAS.Auto cruise
3	LCD diaplay	S830	1. SW830 LCD display with waterproof connector. 2.Cable length 1.5m 3.Speed,5 level PAS,walk speed 6kmh,trip,etc. 4.SW02 protocol. 5.LCD displays optional
4	Throttle	T001+054Grip	1.Thumb throttle with waterproof connector 2.Full twist throttle,half twist throttle,thumb throttle optional 3.Different kinds grips optional

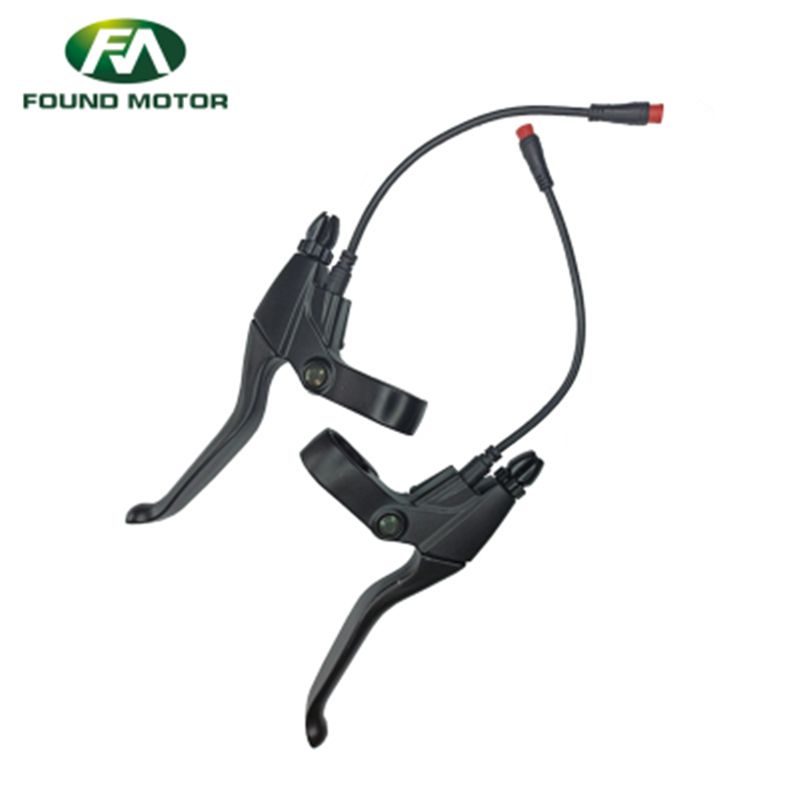

5	Brake lever	19S17	1.Brake lever with waterproof connector 2.Brake levers optional
6	Switch	DK21	1.Light/horn switch with waterproof connector 2.Switches optional
7	Front light	SD001	1.Front light and horn with waterproof connector 2.Lights optional
8	PAS	SW001	1.Double sensors,12 magnets, Right side,waterproof connector 2.PAS SW001,SW002,SW003 optional
9	Waterproof cables	JL 2T5	1.Assembly Cable with waterproof connectors 2.Battery cable with waterproof connectors 3. Motor extension cable with waterproof connnector 500mm 4.All the other waterproof cables for motor,controller,display,throttle,brake lever,switch,PAS,etc
