Integrated wheel motor
FM-01-019 -154- 12’’-22’’
- brushless gearless motor
- hub motor
- electric motor
- electric bicycle
- Description: FM-01-019 -154 12’’-22’’ brushless gearless hub electric motor for electric bicycle/E-bike

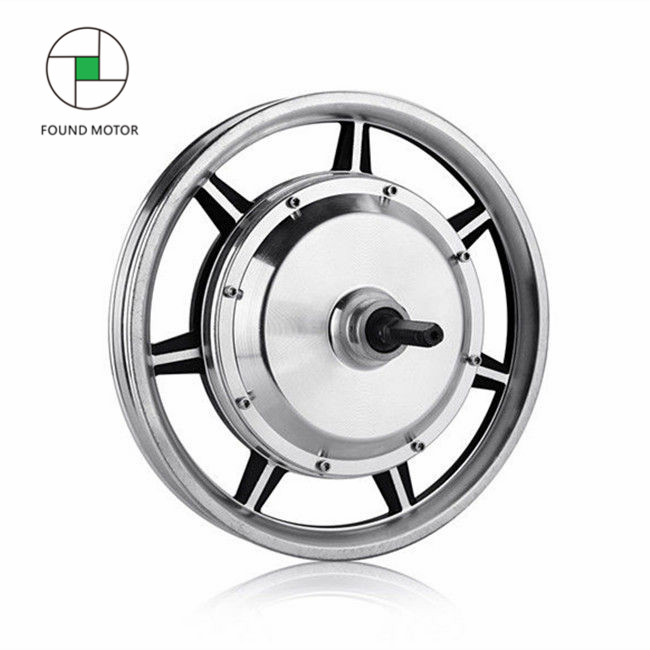

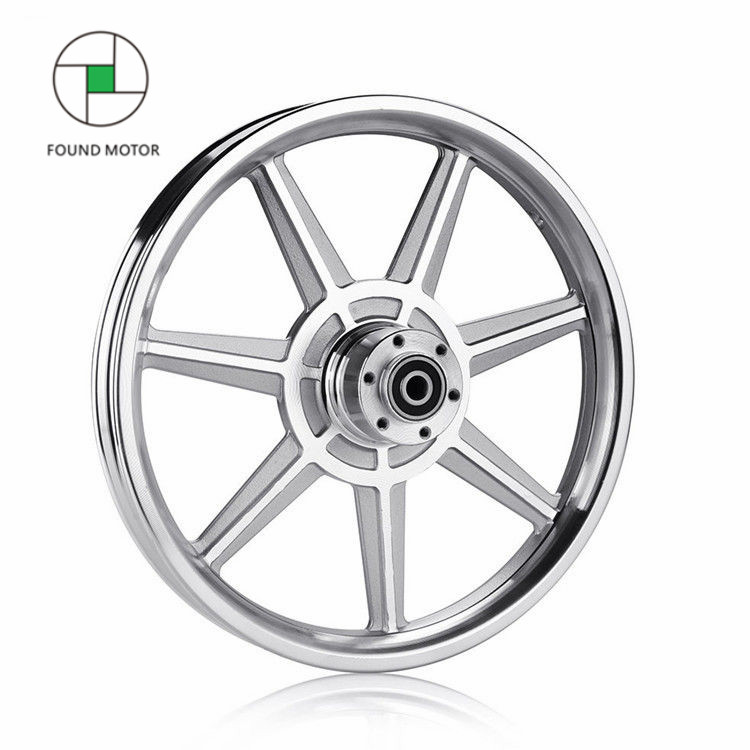

FM-01-019 -154 12’’-22’’ brushless gearless hub electric motor for electric bicycle/E-bike
|
Model |
FM-01-019 |
|
Rated Voltage(V) |
36/48 |
|
Rated power(W) |
250-500 |
|
Wheel Size |
12’’-20’’ |
|
Rated Speed(km/h) |
25-28 |
|
Rated Efficiency(％) |
≥85 |
|
Reduction Ratio |
/ |
|
Weight (Kg) |
4 |
|
Open Size(mm) |
120 |
|
Drive and Freewheel |
1s |
|
Cable Location |
Shaft center left/right |
|
Hall Sensor |
Optional |
|
Integrate Speed sensor |
Optional |
|
Surface |
Silver painted |
|
Brake Type |
Expansile brake/Disc |
|
Salt fog test(h) |
24/96 |
|
Noise (db) |
<60db |
|
Waterproof Grade |
IP54 |
