Magnesium Alloy Motor

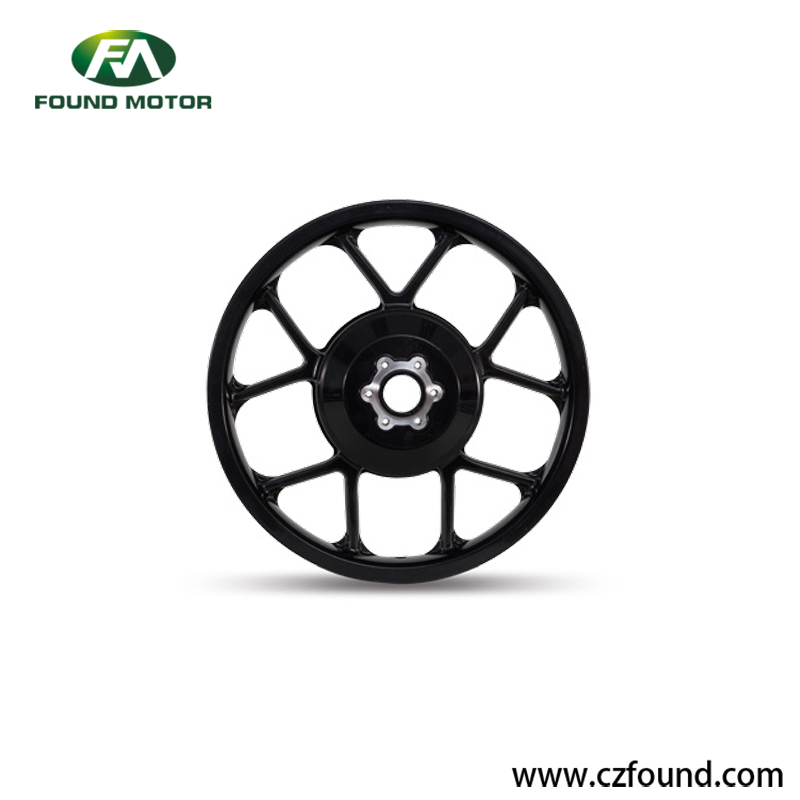

14'' 250W Magnesium Alloy Brushless Hub Motor For Electric Bicycle And Scooter
- FOUND MOTOR
- Brushless geared motor
- Voltage: 24V/36V/48V
- Watt: 180W-500W
- Description: 14'' 250W Magnesium Alloy Brushless Hub Motor For Electric Bicycle And Scooter
14'' 250W Magnesium Alloy Brushless Hub Motor For Electric Bicycle And Scooter
| Model | FM-03-14''-05 |
| Rated Voltage(V) | 24/36/48 |
| Rated power(W) | 180/350 |
| Wheel Size | 14” |
| Rated Speed(km/h) | 25-30 |
| Rated Efficiency(％) | ≥83 |
| Reduction Ratio | 1:4.4 |
| Weight (Kg) | 2.6 |
| Open Size(mm) | 135 |
| Drive and Freewheel | 6-9s |
| Cable Location | Shaft center right |
| Hall Sensor | Optional |
| Integrate Speed sensor | Optional |
| Surface | Shining/Black/Silver |
| Brake Type | V brake/Disc brake |
| Salt fog test(h) | 24/96 |
| Noise (db) | <55db |
| Waterproof Grade |
IP54/IP65 |
