FM-04-003-DCS-8

single shaft motor
dc brushless motor
Geared hub motor
electric wheelchair

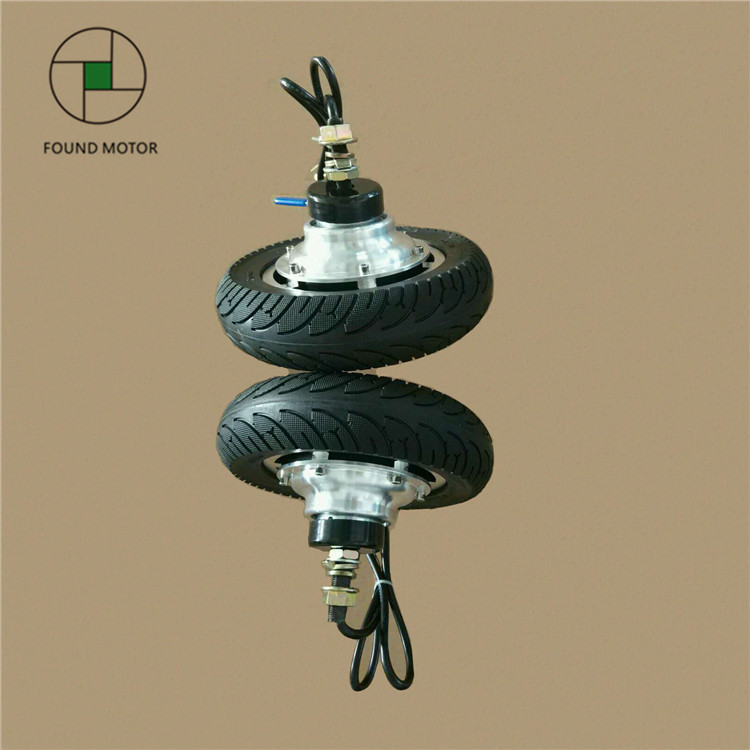

Description: FM-04-003-DCS-8 single shaft/oneside axle dc brushless geared hub motor with electromagnetic brake for electric wheelchair
Inquiry

FM-04-003-DCS-8 single shaft/oneside axle dc brushless geared hub motor with electromagnetic brake for electric wheelchair

NO.	SPEC
1	Wheel diameter	8 inch
2	Rated voltage (V)	DC 24v
3	Rated current (A)	7.5A
4	Rated speed(rpm)	165±10r/min
5	Power (W)	180W
6	Torque(N.M)	8N.M
7	No-load current(A)	≤0.8A
8	No-load speed(rpm)	190±10r/min
9	Efficiency	≥80％
10	Weight	4.1kg
11	Steel magnet material	Rare earth neodymium iron boron
12	Stator punching material	silicon lamination
13	Running direction	CW/CCW
14	Using temperature(℃)	-20℃～+70℃
15	Saving temperature(℃)	-10℃-50℃
16	Saving humidity(％)	≤85％
