Specifications
Model: |
FM-YS1-BK |
Weight: |
Approx. 3.5kg |
Cells: |
18650 |
Discharge Current: |
20A or customized |
End Voltage: |
28V/36.4V |
Cycle life: |
600cycles,capacity>60% |
Dimension(L/W/H): |
433*154*57mm |
Battery Configuration
Max Cells |
Configuration |
Capacity |
|||||
2.0Ah |
2.5Ah |
2.6Ah |
2.9Ah |
3.2Ah |
3.5Ah |
||
52 |
10S4P |
36V8Ah |
36V10Ah |
36V10.4Ah |
36V11.6Ah |
36V12.8Ah |
36V14Ah |
10S5P |
36V10Ah |
36V12.5Ah |
36V13Ah |
36V14.5Ah |
36V16Ah |
36V17.5Ah |
|
13S4P |
48V8Ah |
48V10Ah |
48V10.4Ah |
48V11.6Ah |
48V12.8Ah |
48V14Ah |

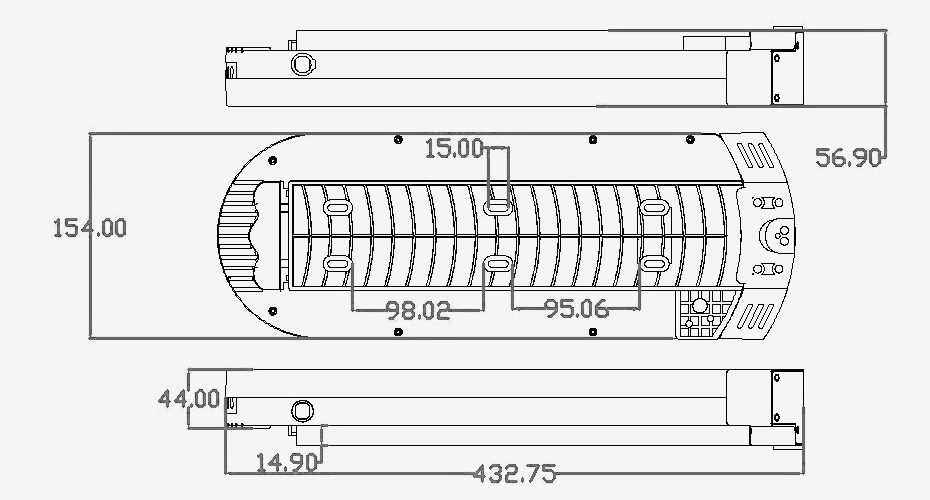

Technical Drawing
