Lithium Battery

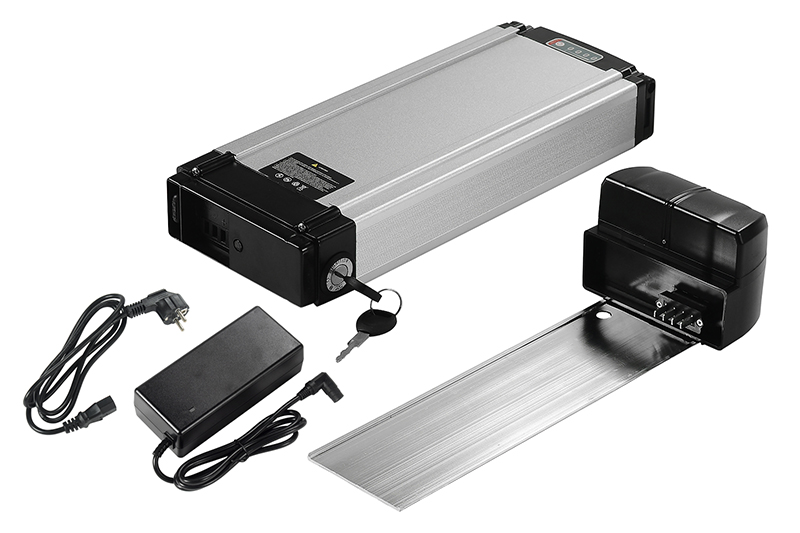

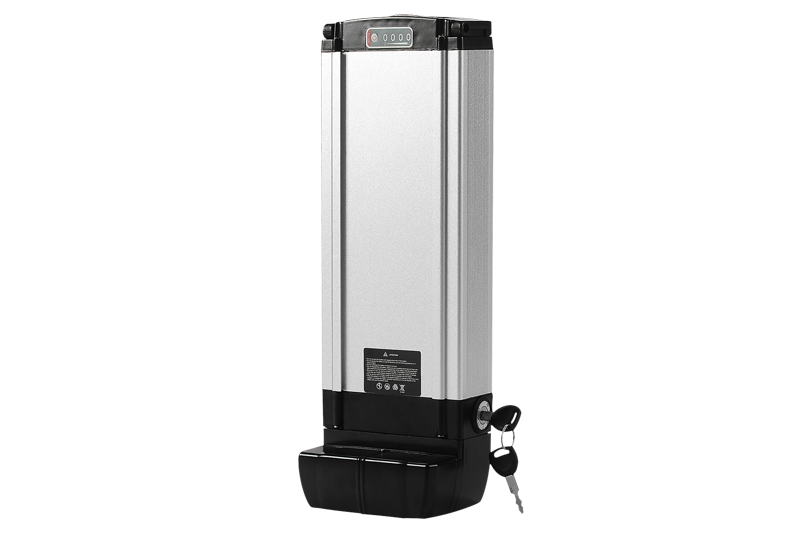

Rear Rack Battery FM-TB120
- lithium battery
- lion battery
- electric bike battery
- electric bike battery
- Description: electric bicycle battery electric bike battery electric bicycle parts electric bike accessories Lithium lion Battery Rear Rack Battery FM-TB120
Specifications
|
Model: |
FM-TB120 |
|
Weight: |
Approx. 3.5kg |
|
Cells: |
18650 |
|
Discharge Current: |
20A or customized |
|
End Voltage: |
28V/36.4V |
|
Cycle life: |
600cycles,capacity>60% |
|
Dimension(L/W/H): |
427*150*105mm |
Battery Configuration
|
Max Cells |
Configuration |
Capacity |
|||||
|
2.0Ah |
2.5Ah |
2.6Ah |
2.9Ah |
3.2Ah |
3.5Ah |
||
|
52 |
10S4P |
36V8Ah |
36V10Ah |
36V10.4Ah |
36V11.6Ah |
36V12.8Ah |
36V14Ah |
|
10S5P |
36V10Ah |
36V12.5Ah |
36V13Ah |
36V14.5Ah |
36V16Ah |
36V17.5Ah |
|
|
13S4P |
48V8Ah |
48V10Ah |
48V10.4Ah |
48V11.6Ah |
48V12.8Ah |
48V14Ah |
|
Technical Drawing
